Part Number: AA226-87
MFG: ALPHA
Description: The AA226-87 is a 4 bit, single positive control GaAs IC FET digital attenuator.It requires DC blockin...
- Table of contents:
AA226-87
-
Suppliers
DataSheet
General Description
AA226-87 General Description
The AA226-87 is a 4 bit, single positive control GaAs IC FET digital attenuator.It requires DC blocking capacitors, positive supply voltage (VS ) and four individual positive bit control voltages (V 1- V4).The AA226-87 is particularly suited where high attenuation accuracy, low insertion loss and low intermodulation products are required.Typical applications include base station, wireless data and wireless local loop gain control circuits.
AA226-87 Maximum Ratings
RF Input Power...............1 W > 500 MHz 0/8 V0.5 W @ 50 MHz 0/8 V
Supply Voltage.............................................................................+8 V
Control Voltage.................................................................-0.2 V, +8 V
Operating Temperature............................................-40°C to +85°C
Storage Temperature.............................................-65°C to +150°C
Supply Voltage.............................................................................+8 V
Control Voltage.................................................................-0.2 V, +8 V
Operating Temperature............................................-40°C to +85°C
Storage Temperature.............................................-65°C to +150°C
AA226-87 Features
Attenuation 1 dB Steps to 15 dB with High Accuracy
Single Positive Control (+3 to +5 V) forEach Bit
Low DC Power Consumption
Small Low Cost TSSOP-16 Plastic Package
Single Positive Control (+3 to +5 V) forEach Bit
Low DC Power Consumption
Small Low Cost TSSOP-16 Plastic Package

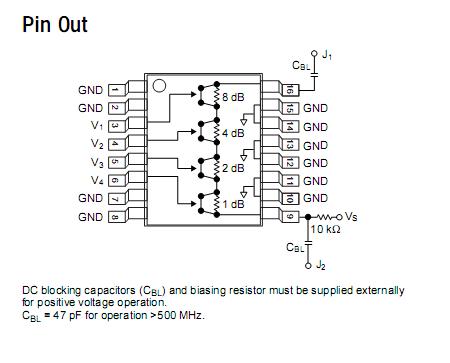

AA226-87 Connection Diagram
AA226-87
