AA230-24

Features: Attenuation in 4 dB steps to 28 dB with High AccuracyLow Cost SOIC-14 Plastic PackageLow DCPower ConsumptionPinoutSpecificationsRF Input Power.............2 W > 500 MHz 0/8 V0.75 W @ 50 MHz 0/8 V Supply Voltage..............................................................................

product image

AA230-24 Picture
See larger image
SeekIC No. : 004260915 Detail

AA230-24: Features: Attenuation in 4 dB steps to 28 dB with High AccuracyLow Cost SOIC-14 Plastic PackageLow DCPower ConsumptionPinoutSpecificationsRF Input Power.............2 W > 500 MHz 0/8 V0.75 W @ 50...

AA230-24 Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
AA230-24
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2024/4/27

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

Attenuation in 4 dB steps to 28 dB with High Accuracy
Low Cost SOIC-14 Plastic Package
Low DCPower Consumption

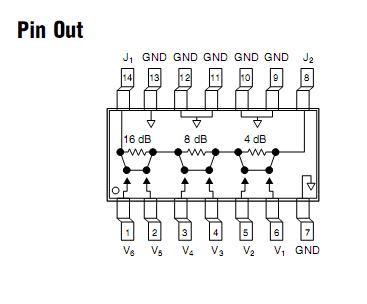

Pinout

Connection Diagram


Specifications

RF Input Power.............2 W > 500 MHz 0/8 V0.75 W @ 50 MHz 0/8 V
Supply Voltage.............................................................................+8 V
Control Voltage.................................................................-0.2 V, +8 V
Operating Temperature............................................-40°C to +85°C
Storage Temperature.............................................-65°C to +150°C


Description

The AD230-24 is an IC FET Digital Attenuator consisting of three monolithic attenuators with LSB of 4 dB and a total attenuation of 28 dB with all attenuators connected. Attenuators are switched with -5 and 0 V. The AD230-24 is particularly suited where high attenuation accuracy, low insertion loss and low intermodulation products are required.Typical applications include cellular radio, wireless data, wireless local loop and other gain level control circuits.
