General Description
AA280-25 General Description
The AD280-25 is a 5 bit, GaAs IC FET digital attenuator in a low cost SOIC-16 package.This attenuator has an LSB of 0.5 dB and a total attenuation of 15.5 dB. The AD280-25 is particularly suited where high attenuation accuracy, low insertion loss and low intermodulation products are required.Typical applications include cellular radio, wireless data, wireless local loop and other gain level control circuits.
AA280-25 Maximum Ratings
RF Input Power............2 W > 500 MHz 0/-8 V0.5 W @ 50 MHz 0/-8 V
Supply Voltage.............................................................................+8 V
Control Voltage.................................................................-0.2 V, +8 V
Operating Temperature............................................-40°C to +85°C
Storage Temperature.............................................-65°C to +150°C
Supply Voltage.............................................................................+8 V
Control Voltage.................................................................-0.2 V, +8 V
Operating Temperature............................................-40°C to +85°C
Storage Temperature.............................................-65°C to +150°C
AA280-25 Features
Attenuation 0.5 dB Steps to 15.5 dB with High Accuracy
Low DC Power Consumption
Low Cost SOIC-16 Plastic Package
Low DC Power Consumption
Low Cost SOIC-16 Plastic Package

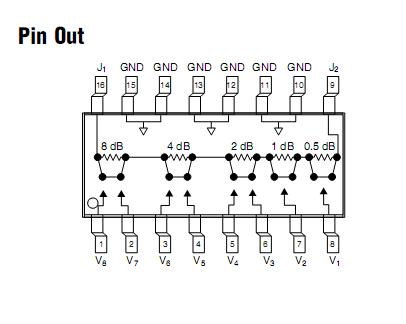

AA280-25 Connection Diagram
AA280-25
