Description: AA87221AP is a vertical driver with 3 levels of output voltage processed in a standard CMOS.
- Table of contents:
AA87221AP
-
Suppliers
DataSheet
General Description
AA87221AP General Description
AA87221AP is a vertical driver with 3 levels of output voltage processed in a standard CMOS.
AA87221AP Maximum Ratings
| Parameter | Symbol | Rating | UNIT | ||
| MIN | TYP | MAX | |||
| Supply Voltage | VEE | -10 | 0 | V | |
| VHH | -0.3 | VEE+30 | V | ||
| VME | VEE-0.3 | 3 | V | ||
| Input Voltage | VI | -0.3 | VHH+0.3 | V | |
| Output Voltage | OV1, OV3, VSUB | VEE-0.3 | VHH+0.3 | V | |
| OV2, OV4 | VEE-0.3 | VME+0.3 | V | ||
| Voltage-Amplifier Output Current |
Idcout | -5 | 5 | mA | |
| Operating Ambient Temperature |
Ta | -25 | 85 | ||
| Storage Temperature | Ts | -45 | 125 | ||
NOTE: Stress above those listed under "Absolute Maximum Rating" may cause permanent damage to the device. This is a stress rating only and functional operation of the device at these or any other conditions above those indicated in the operational section of this specification is not implied. Exposure to absolute maximum rating conditions for the extended periods of time may affect device reliability.
AA87221AP Features
· 3 levels of output voltage, 15V, 0V and -8.5V
· 3.3V / 5V input voltage
· Build in a 15V voltage amplifier circuit
· 3.3V / 5V input voltage
· Build in a 15V voltage amplifier circuit

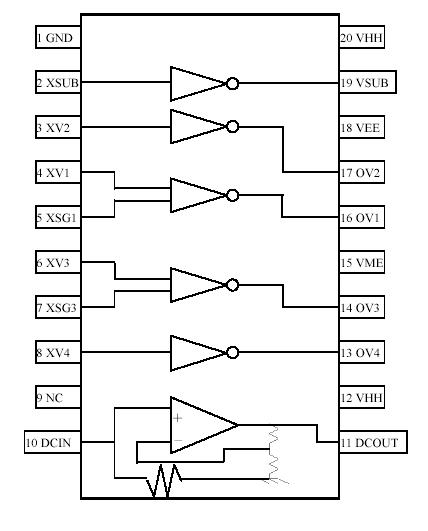

AA87221AP Connection Diagram
AA8622AP
PDF/DataSheet Download
- Datasheet: AA8622AP
- File Size: 223826 KB
- Manufacturer: ETC [ETC]
- Click here to Download
- ·AA87221
- 287767 KB
- ·AA87222
- AGA MEM 公司CCD VERTICAL DRIVER
- 163985 KB
AA87221AP Relative Products
AA87221
AA87221 is a vertical driver with 3 levels of output voltage processed in a standard CMOS.
