Purchase AAT1109A, In-stock AAT1109A From SeekIC.
Part Number: AAT1109A
Description: The AAT1109A is a one-channel switching regulator control IC incorporating a soft start fu...
- Table of contents:
AAT1109A
-
Suppliers
DataSheet
General Description
AAT1109A General Description
The AAT1109A is a one-channel switching regulator control IC incorporating a soft start function and a short circuit protection function. Each device consists of an on-chip voltage reference, error amplifier, pulse width modulation controller, under-voltage protection, soft start and short circuit protection circuits. Switching frequencies up to 1MHz are set by an external resistor and capacitor. Soft-start time can be implemented by the SCP capacitor.
Additionally, a chip enable feature is provided to power down reducing the supply current to 10uA. With a minimum number of external components, the AAT1109A offers a simple and cost effective solution.
AAT1109A Maximum Ratings
| CHARACTERISTICS | SYMBOL |
Value | Units |
|
Supply Voltage |
V DD | 7 | V |
| Output current | IO | -120/+120 | mA |
| Operating free-air temperature range | T ope | -20 to 85 | °C |
| Junction Temperature |
Tstg | -65 to 150 | °C |
| Power dissipation | PD | 500 | mW |
AAT1109A Features
Under-voltage lockout protection
Totem pole output
Output short circuit protection
ncorporates soft start function
Wide operating frequency
10kHz to 1MHz
Shut down control
Low dissipation current :
Typical 1.6mA in operation
Sop-8 & Tssop-8 package available
Totem pole output
Output short circuit protection
ncorporates soft start function
Wide operating frequency
10kHz to 1MHz
Shut down control
Low dissipation current :
Typical 1.6mA in operation
Sop-8 & Tssop-8 package available

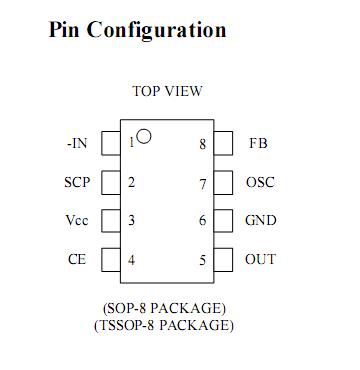

AAT1109A Connection Diagram
AAT1109A
