AAT1143

Features: VIN Range: 2.7V to 5.5VVOUT Adjustable Down to 0.6V-Fixed or Adjustable Versio25ANo Load Quiescent CurrenUp to 95% Efficiency400mAMax Output Current1MHz Switching FrequencySoft StartOver-Temperature ProtectionCurrent Limit Protection100% Duty Cycle Low-Dropout Operation0.1AShutdown Curre...

product image

AAT1143 Picture
See larger image
SeekIC No. : 004261011 Detail

AAT1143: Features: VIN Range: 2.7V to 5.5VVOUT Adjustable Down to 0.6V-Fixed or Adjustable Versio25ANo Load Quiescent CurrenUp to 95% Efficiency400mAMax Output Current1MHz Switching FrequencySoft StartOver-T...

AAT1143 Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
AAT1143
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2024/4/27

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

VIN Range: 2.7V to 5.5V
VOUT Adjustable Down to 0.6V
-Fixed or Adjustable Versio
25ANo Load Quiescent Curren
Up to 95% Efficiency
400mAMax Output Current
1MHz Switching Frequency
Soft Start
Over-Temperature Protection
Current Limit Protection
100% Duty Cycle Low-Dropout Operation
0.1AShutdown Curren
SC70JW-8 Package
Temperature Range: -40°C to +85°C


Application

Cellular Phones
Digital Cameras
Handheld Instruments
Microprocessor / DSPCore / IO Power
PDAs and Handheld Computers
USB Devices

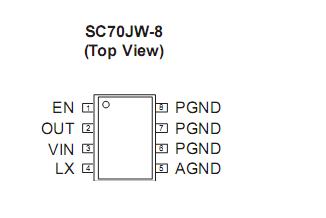

Pinout

Connection Diagram


Specifications

Symbol Description
 Value Units

VCC , VP

 VCC , VP to GND

6.0

 V
VLX

 LX to GND -0.3 to VP +0.3 V
VFB
 FB to GND -0.3 to V CC+0.3 V
VEN EN to GND -0.3 to 6 V
TJ
 Operating Junction Temperature Range -40 to 150 °C
TLEAD Maximum Soldering Temperature (at leads, 10 sec) 300 °C



Description

The AAT1143 SwitchReg™ is a member of AnalogicTech's Total Power Management IC™ (TPMIC™) product family. It is a 1MHz step-down converter with an input voltage range of 2.7V to 5.5V and output as low as 0.6V. Its low supply cur- rent, small size, and high switching frequency make the AAT1143 the ideal choice for portable applications.

The AAT1143 is available in either a fixed version with internal feedback or a programmable version with external feedback resistors. It can deliver 400mAof load current while maintaining a low 25Ano load quiescent current. The 1MHz switch ing frequency minimizes the size of external com-ponents while keeping switching losses low. The AAT1143 feedback and control delivers excellent load regulation and transient response with a small output inductor and capacitor.
