Features: • Low Dropout - 400mV at 300mA• Guaranteed 300mA Output• High accuracy ±1.5%• 70µA Quiescent Current• Fast line and load transient response• High speed device turn-on and shutdown• High Power Supply Ripple Rejection• Low self noise...
AAT3238: Features: • Low Dropout - 400mV at 300mA• Guaranteed 300mA Output• High accuracy ±1.5%• 70µA Quiescent Current• Fast line and load transient response• High ...
SeekIC Buyer Protection PLUS - newly updated for 2013!
268 Transactions
All payment methods are secure and covered by SeekIC Buyer Protection PLUS.
Symbol | Description | Value | Units |
VIN | Input Voltage | 6 | V |
IOUT | Maximum DC Output Current | PD/(VIN-VO) | mA |
TJ | Operating Junction Temperature Range | -40 to 150 | °C |
The AAT3238 MicroPower™ Low Dropout Linear Regulator is ideally suited for portable applications where very fast transient response, extended battery life and small size are critical. The AAT3238 has been specifically designed for high speed turn on and turn off performance, fast transient response, good power supply ripple rejection (PSRR) and is reasonably low noise, making it ideal for powering sensitive circuits with fast switching requirements.
Other features include low quiescent current, typically 70µA, and low dropout voltage which is typically less than 400mV at the maximum output current level of 300mA. The device is output short circuit protected and has a thermal shutdown circuit for additional protection under extreme operating conditions.
The AAT3238 also features a low-power shutdown mode for extended battery life. A reference bypass pin has been provided to improve PSRR performance and output noise, by connecting a small external capacitor from the AAT3238's reference output to ground.

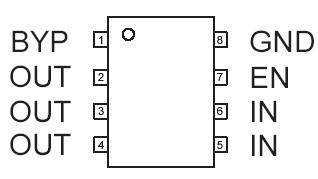

The AAT3238 is available in a space saving 6-pin SOT23 or 8-pin SC70JW package in 14 factory programmed voltages of 1.2V, 1.5V, 1.6V, 1.8V, 1.85V, 2.0V, 2.3V, 2.5V, 2.7V, 2.8V, 2.85V, 3.0V, 3.3V or 3.5V.
