Product Details

Description



Features:

• 4.5V to 15V Input voltage range
• 1% Accurate Preset Voltages: 4.1V, 4.2V, 8.2V, 8.4V
• Low operation current, typically 0.5mA
• Programmable Charge Current
• Automatic recharge sequencing
• Battery temperature monitoring
• Deep discharge cell conditioning
• Fast trickle charge option with thermal over-ride
• Full battery charge auto turn off / sleep mode
• Over voltage, current and temperature protection
• Power on reset
• LED Charge Status Output or System Microcontroller serial interface
• Temperature range -20 to 70°C
• 8 pin MSOP, 12 pin TSOPJW package




Application

• Cellular Phones
• Personal Digital Assistants (PDA's)
• Desktop Chargers
• USB Chargers

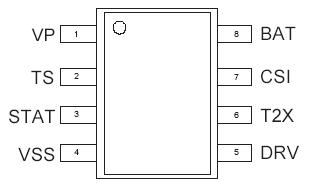

Pinout

Connection Diagram




Specifications

Symbol Description Value Units
VP VP relative to VSS -0.3 to 16 V
VCSI CSI to GND -0.3 to VP+0.3 V
VT2X T2X to GND -0.3 to 5.5 V
VBAT BAT to GND -0.3 to VP+0.3 V
TJ Operating Junction Temperature Range -40 to 150 °C
TLEAD Maximum Soldering Temperature (at Leads) 300 °C
ESD ESD Rating Note 1 kV





Description

The AAT3680 BatteryManager™ is a member of AnalogicTech's Total Power Management IC™ family. This device AAT3680 is an advanced Lithium-Ion (Li- Ion) battery charge and management IC, specifically designed for low cost compact portable applications. In a single 8-pin package, the AAT3680 precisely regulates battery charge voltage and charge current. This device is capable of two trickle charge current levels controlled by one external pin. Battery charge temperature and charge state are carefully monitored for fault conditions. In the event of an over current, short circuit or over temperature failure, the device will automatically shut down, thus protecting the charging device AAT3680 and the battery under charge. A battery charge state monitor output pin is provided to indicate the battery charge status though a display LED. The battery charge status output is a serial interface which may also be read by a system microcontroller.

The AAT3680 is available in an 8-pin MSOP or 12-pin TSOPJW package, specified over -20 to 70°C range.
