SeekIC No. : 00129917 Detail

ABDG-ET-DP103: WiFi / 802.11 Modules Ethernet Bridge to 802.11b/g Board Only

ABDG-ET-DP103 Data Sheet

Get Latest Price

Part Number:: ABDG-ET-DP103
Mfg:: Quatech
Supply Ability:: 5000

Price Break

Qty
1~5000

Unit Price
Negotiable

Processing time
15 Days

SeekIC Buyer Protection PLUS - newly updated for 2013!

Escrow Protection.
Guaranteed refunds.
Secure payments.
Learn more >>

Month Sales

268 Transactions

Rating

evaluate (4.8 stars)

Upload time: 2024/4/18

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.

Recent History
What is this?

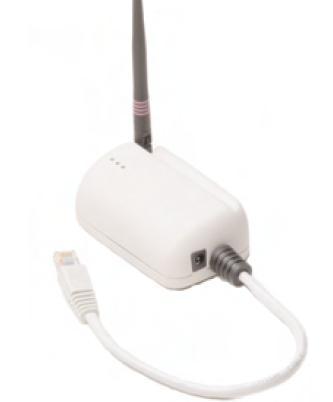

ABDG-BR-DP501 evaluate
US $137.4 - 137.4 / Piece

WiFi / 802.11 Modules WIRELESS BRIDGE EXT 802.11 B/G BRIDGE

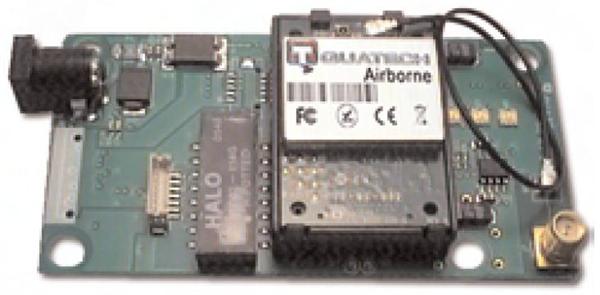

ABDG-BR-DP553 evaluate
US $99.84 - 99.84 / Piece

WiFi / 802.11 Modules WIRELESS ETH BRIDGE ETH BRIDGE BOARD

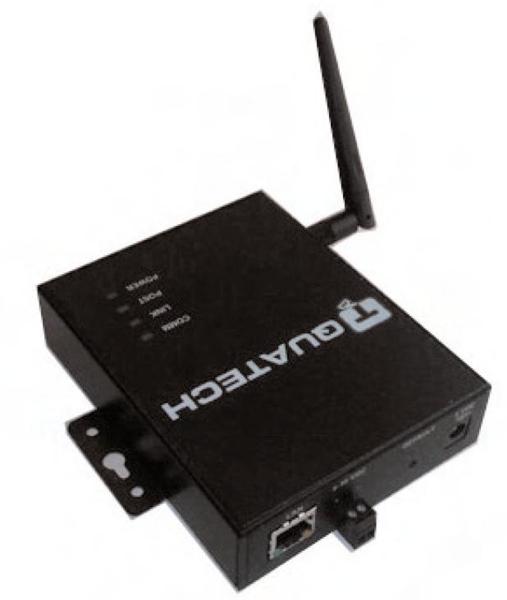

ABDG-BR-IN5010 evaluate
US $185.4 - 185.4 / Piece

WiFi / 802.11 Modules IND WIRELESS BRIDGE 802.11 B/G BRIDGE

Product Details

Quick Details

Protocol Supported :	802.11 b/g	Frequency Band :	2.4 GHz
Data Rate :	11 Mbps, 54 Mbps	Interface Type :	Ethernet
Transmit Power (Max) :	14 dBm	Antenna Connector Type :	RPSMA
Operating Supply Voltage :	5 V	Supply Current Transmitting :	500 mA
Supply Current Receiving :	530 mA	Operating Temperature Range :	- 20 C to + 85 C
Dimensions :	89.7 mm x 46.3 mm x 14.5 mm

Description

Protocol Supported : 802.11 b/g
Frequency Band : 2.4 GHz
Data Rate : 11 Mbps, 54 Mbps
Interface Type : Ethernet
Operating Temperature Range : - 20 C to + 85 C
Transmit Power (Max) : 14 dBm
Antenna Connector Type : RPSMA
Operating Supply Voltage : 5 V
Supply Current Transmitting : 500 mA
Supply Current Receiving : 530 mA
Dimensions : 89.7 mm x 46.3 mm x 14.5 mm

Parameters:

Technical/Catalog Information	ABDG-ET-DP103
Vendor	Quatech/DPAC Technologies
Category	RF and RFID
Modulation or Protocol	802.11 b/g
Data Rate - Maximum	54Mbps
Power - Output	12dBm
Frequency	2.4GHz ~ 2.48GHz
Applications	Bridge, Ethernet
Sensitivity	-71dBm
Voltage - Supply	5V
Package / Case	Packaged Unit
Features	Ethernet to Wireless LAN (External)
Lead Free Status	Lead Free
RoHS Status	RoHS Compliant
Other Names	ABDG ET DP103 ABDGETDP103 590 1037 ND 5901037ND 590-1037
