ABV2088

Features: • 19MHz to 65MHz fundamental crystal input.• Output range: 9.5MHz 65MHz• Complementary outputs: PECL or LVDS output.• Selectable OE Logic (enable high or enable low).• Integrated variable capacitors.• Supports 2.5V or 3.3V Power Supply.• Availab...

product image

ABV2088 Picture
See larger image
SeekIC No. : 004264354 Detail

ABV2088: Features: • 19MHz to 65MHz fundamental crystal input.• Output range: 9.5MHz 65MHz• Complementary outputs: PECL or LVDS output.• Selectable OE Logic (enable high or enable lo...

ABV2088 Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
ABV2088
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2024/4/26

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

• 19MHz to 65MHz fundamental crystal input.
• Output range: 9.5MHz 65MHz
• Complementary outputs: PECL or LVDS output.
• Selectable OE Logic (enable high or enable low).
• Integrated variable capacitors.
• Supports 2.5V or 3.3V Power Supply.
• Available in 16 pin TSSOP package.

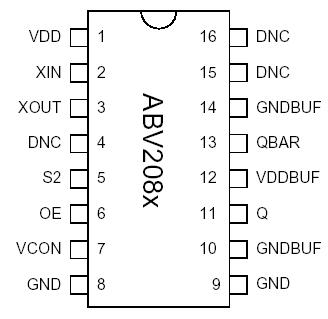

Pinout

Connection Diagram


Specifications

PARAMETERS SYMBOL MIN. MAX. UNITS
Supply Voltage VDD   4.6 V
Input Voltage, dc VI -0.5 VDD+0.5 V
Output Voltage, dc VO -0.5 VDD+0.5 V
Storage Temperature TS -65 150 °C
Ambient Operating Temperature* TA -40 85 °C
Junction Temperature TJ   125 °C
Lead Temperature (soldering, 10s)     260 °C
ESD Protection, Human Body Model     2 kV



Description

The ABV2088 (PECL) and ABV2089 (LVDS) are VCXO ICs specifically designed to work with fundamental crystals between 19MHz and 65MHz. The selectable divide by two feature extends the operation range from 9.5MHz to 65MHz. They require very low current into the crystal resulting in better overall stability. The OE logic feature allows selection of enable high or enable low.
