Product Details

Description



Features:

• 19MHz to 65MHz crystal input.
• Output range: 9.5MHz 65MHz
• Complementary outputs: PECL or LVDS output.
• Selectable OE Logic (enable high or enable low).
• Supports 2.5V or 3.3V Power Supply.
• Available in 16 pin TSSOP package.

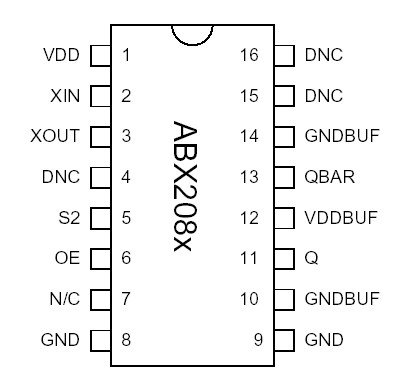

Pinout

Connection Diagram


Specifications

PARAMETERS
SYMBOL
MIN.
MAX.
UNITS
Supply Voltage
Input Voltage, dc
Output Voltage, dc
Storage Temperature
Ambient Operating Temperature*
Junction Temperature
Lead Temperature (soldering, 10s)
ESD Protection, Human Body Model
VDD
VI
VO
TS
TA
TJ
-0.5
-0.5
-65
-40
4.6
VDD+0.5
VDD+0.5
150
85
125
260
2
V
V
V
°C
°C
°C
°C
kV

Exposure of the device under conditions beyond the limits specified by Maximum Ratings for extended periods may cause permanent damage to the device and affect product reliability. These conditions represent a stress rating only, and functional operations of the device at these or any other conditions above the operational limits noted in this specification is not implied.
* Note: Operating Temperature is guaranteed by design for all parts (COMMERCIAL and INDUSTRIAL), but tested for COMMERCIAL grade only.




Description

The ABX2088 (PECL) and ABX2089 (LVDS) are XO ICs specifically designed to work with fundamental or 3rd OT crystals between 19MHz and 65MHz. The selectable divide by two feature extends the operation range from 9.5MHz to 65MHz. They require very low current into the crystal resulting in better overall stability. The OE logic feature allows selection of enable high or enable low.
