Part Number: ACD0900S3CTR
MFG: NS
D/C: O9+
Description: The ACD0900 MMIC is a high performance downconverter fabricated entirely in GaAs. It is designed for u...
- Table of contents:
ACD0900S3CTR
-
Suppliers
DataSheet
General Description
ACD0900S3CTR General Description
The ACD0900 MMIC is a high performance downconverter fabricated entirely in GaAs. It is designed for use as the second conversion stage in double-conversion tuners and cable modems, downconverting 900 -1200 MHz RF inputs to a fixed IF of 35 - 150 MHz (depending on LO frequency).
The IC incorporates a low noise amplifier, high linearity double balanced mixer, phase splitter and oscillator in a modified SOIC 16 lead surface mount package. The high degree of functionality allows tuner manufactures to reduce size and cost by lowering the component count and decreasing the amount of production alignment steps, while significantly improving performance and reliability.
ACD0900S3CTR Maximum Ratings
| PARAMETER | MIN | MAX | UNIT |
| V DDIF , V DDLO , V OSC | - | 9 | Volts |
| V RF , V TCKT (1) | - | 0 | Volts |
| Storage Temperature | -55 | 200 | °C |
| Soldering Temperature | - | 260 | °C |
| Soldering Time | - | 5 | Sec. |
| RF Input Power | - | +10 | dBm |
| LO Input Power | - | +17 | dBm |
| Thermal Resistance | - | 25 | °C/W |
(1) VTCKT : Maximum voltage that may be applied to pin 11 of the device without
damaging the IC. DC blocking capacitor (1500 pF) between pin 11 and the
external tuning circuit is mandator
ACD0900S3CTR Features
• Integrated Monolithic Downconverter
• 8 dB Noise Figure
• 10 dB Conversion Gain
• High Linearity
• Small Size
• Low Cost
• High Reliability
• RoHS-Compliant Package Option
• 8 dB Noise Figure
• 10 dB Conversion Gain
• High Linearity
• Small Size
• Low Cost
• High Reliability
• RoHS-Compliant Package Option

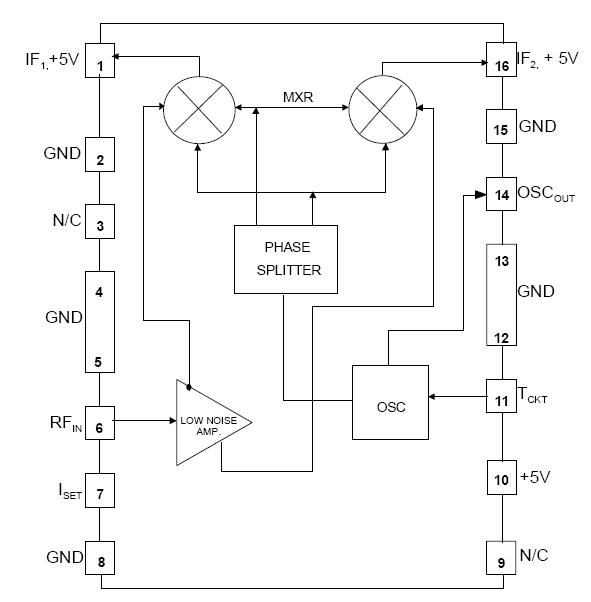

ACD0900S3CTR Connection Diagram
ACD0900S3CTR
