General Description
ACE1001 General Description
The ACE1001 is a member of the ACEx (Arithmetic Controller Engine) family of microcontrollers. It is a dedicated programmable monolithic integrated circuit for applications requiring high performance,low power, and small size. It is a fully static part fabricated using CMOS technology.
The ACE1001 product family has an 8-bit core processor, 64 bytes of RAM, 64 bytes of data EEPROM and 1K bytes of code EEPROM. Its on-chip peripherals include a programmable 8-bit timer with PWM output, watch-dog/idle timer, and programmable undervoltage detection circuitry. The on-chip clock and reset functions reduce the number of required external components.
The ACE1001 product family is available in 8-pin SOIC and TSSOP packages.
ACE1001 Maximum Ratings
Ambient Storage Temperature ..........-65°C to +150°C
Input Voltage not including G3 ..........-0.3V to VCC+0.3V
G3 Input Voltage ..........................................0.3V to 13V
Lead Temperature (10s max) ............................+300°C
Electrostatic Discharge on all pins ..................2000V min
Input Voltage not including G3 ..........-0.3V to VCC+0.3V
G3 Input Voltage ..........................................0.3V to 13V
Lead Temperature (10s max) ............................+300°C
Electrostatic Discharge on all pins ..................2000V min
ACE1001 Features
` Arithmetic Controller Engine
` 1K bytes on-board code EEPROM
` 64 bytes data EEPROM
` 64 bytes RAM
` Watchdog
` Multi-input wake-up 3 I/O pins
` 8-bit Timer1 with PWM output
` On-chip oscillator
- No external components
- 1s instruction cycle time
` On-chip Power-on Reset
` Brown-out Reset
` Programmable read and write disable functions
` Memory mapped I/O
` Multilevel Low Voltage Detection
` Fully static CMOS
- Low power HALT mode (100nA @ 3.3V)
- Power saving IDLE mode
` Single supply operaton
- 1.8 - 5.5V (ACE1001L)
- 2.2 - 5.5V (ACE1001)
` Software selectable I/O options
- Push-pull outputs with tri-state option
- Weak pull-up or high impedance inputs
` 40 years data retention
` 1,000,000 writes
` 8-pin SOIC and TSSOP packages.
` 1K bytes on-board code EEPROM
` 64 bytes data EEPROM
` 64 bytes RAM
` Watchdog
` Multi-input wake-up 3 I/O pins
` 8-bit Timer1 with PWM output
` On-chip oscillator
- No external components
- 1s instruction cycle time
` On-chip Power-on Reset
` Brown-out Reset
` Programmable read and write disable functions
` Memory mapped I/O
` Multilevel Low Voltage Detection
` Fully static CMOS
- Low power HALT mode (100nA @ 3.3V)
- Power saving IDLE mode
` Single supply operaton
- 1.8 - 5.5V (ACE1001L)
- 2.2 - 5.5V (ACE1001)
` Software selectable I/O options
- Push-pull outputs with tri-state option
- Weak pull-up or high impedance inputs
` 40 years data retention
` 1,000,000 writes
` 8-pin SOIC and TSSOP packages.

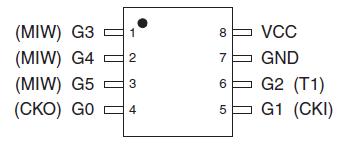

ACE1001 Connection Diagram
ACE1001
PDF/DataSheet Download
- Datasheet: ACE1001
- File Size: 522684 KB
- Manufacturer: FAIRCHILD [Fairchild Semiconductor]
- Click here to Download
