EMI Filters 800ohms @ MHz .15A 2.5 mm x 2 mm

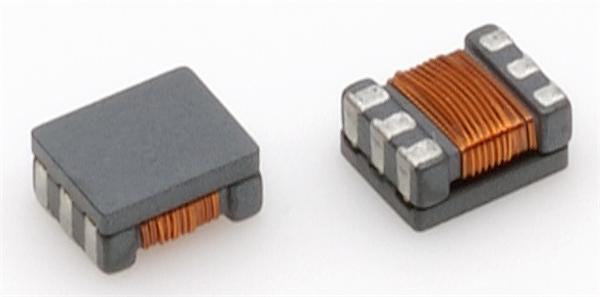

ACM2520-801-3P-T002: EMI Filters 800ohms @ MHz .15A 2.5 mm x 2 mm
SeekIC Buyer Protection PLUS - newly updated for 2013!
268 Transactions
All payment methods are secure and covered by SeekIC Buyer Protection PLUS.
Maximum DC Current : | 0.15 Amp | Maximum DC Resistance : | 1.6 Ohms | ||
Voltage Rating : | 20 Volts | Termination Style : | SMD/SMT | ||
Operating Temperature Range : | - 25 C to + 85 C | Series : | ACM |
Technical/Catalog Information | ACM2520-801-3P-T002 |
Vendor | TDK Corporation |
Category | Filters |
Inductance | - |
Impedance | 800 Ohm |
DC Resistance (DCR) | 1.600 Ohm Max |
Current | 150mA |
Filter Type | Common Mode - 3 Line Array |
Mounting Type | Surface Mount |
Package / Case | 0.098" L x 0.079" W x 0.047" H (2.50mm x 2.00mm x 1.20mm) |
Packaging | Tape & Reel (TR) |
Lead Free Status | Lead Free |
RoHS Status | RoHS Compliant |
Other Names | ACM2520 801 3P T002 ACM25208013PT002 445 4842 2 ND 44548422ND 445-4842-2 |
