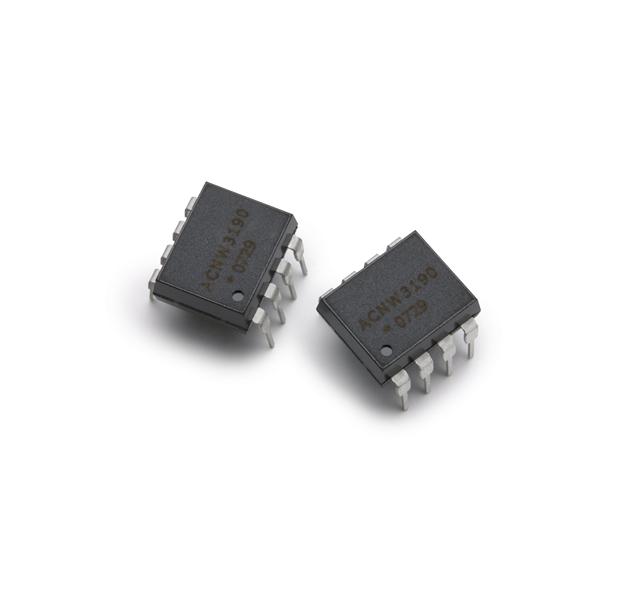

ACNW3190-000E

Output Type :
Maximum Continuous Output Current :
Minimum Operating Temperature : - 40 C
Packaging : Tube
Maximum Propagation Delay Time : 500 ns
Maximum Reverse Diode Voltage : 5 V
Maximum Forward Diode Current : 16 mA
Maximum Operating Temperature : + 100 C
Package / Case : DIP-8
Maximum Forward Diode Voltage : 1.95 V
Isolation Voltage : 5000 Vrms
Maximum Power Dissipation : 850 mW


Description

The ACNW3190 contains an AlGaAs LED, which is optically coupled to an integrated circuit with a power output stage. This optocoupler is ideally suited for driving power IGBTs and MOSFETs used in motor control inverter applications.

The high operating voltage range of the output stage provides the drive voltages required by gate controlled
devices. The voltage and high peak output current supplied by this optocoupler makeACNW3190 ideally suited for direct driving IGBTs with ratings up to 1200V/200 A, 600 V/300 A. For IGBTs with higher ratings, the ACNW3190 can be used to drive a discrete power stage which drives the IGBT gate. The ACNW3190 has the highest insulation
voltage of VIORM=1414 Vpeak in the IEC/ EN/DIN EN 60747-5-2.


Parameters:

Technical/Catalog Information	ACNW3190-000E
Vendor	Avago Technologies US Inc.
Category	Isolators
Lead Free Status	Lead Free
RoHS Status	RoHS Compliant
Other Names	ACNW3190 000E ACNW3190000E
