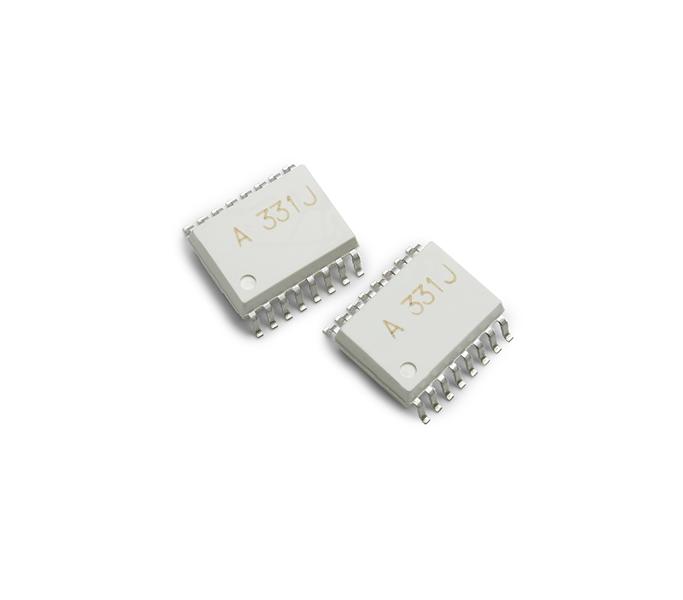

ACPL-331J-000E

Output Type :
Maximum Propagation Delay Time :
Maximum Continuous Output Current :
Maximum Operating Temperature : + 105 C
Minimum Operating Temperature : - 40 C
Packaging : Tube
Isolation Voltage : 3750 Vrms
Maximum Power Dissipation : 600 mW
Maximum Reverse Diode Voltage : 5 V
Package / Case : SOIC-16
Maximum Forward Diode Current : 12 mA
Maximum Forward Diode Voltage : 1.95 V


Description

The ACPL-331J is an advanced 1.5 A output current, easy-to-use, intelligent gate driver which makes IGBT V_CE fault protection compact, affordable, and easy-to implement. Features such as integrated V_CE detection, under voltage lockout (UVLO), "soft" IGBT turn-off, isolated open collector fault feedback and active Miller clamping provide maximum design flexibility and circuit protection.

The ACPL-331J contains a GaAsP LED. The LED is optically coupled to an integrated circuit with a power output stage. ACPL-331J is ideally suited for driving power IGBTs and MOSFETs used in motor control inverter applications. The voltage and current supplied by these optocouplers make them ideally suited for directly driving IGBTs with ratings up to 1200 V and 100 A. For IGBTs with higher ratings, the ACPL-331J can be used to drive a discrete power stage which drives the IGBT gate. The ACPL-331J has an insulation voltage of V_IORM = 891 V_peak.
