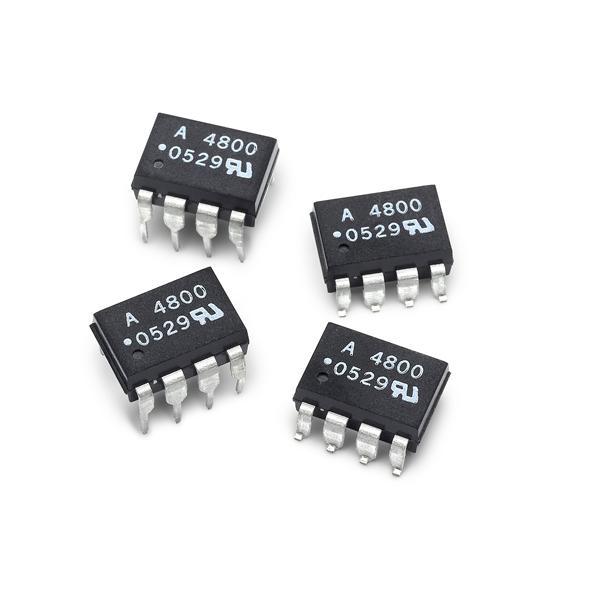

ACPL-4800-000E

Maximum Reverse Diode Voltage :
Maximum Continuous Output Current :
Maximum Power Dissipation :
Minimum Operating Temperature : - 40 C
Packaging : Tube
Isolation Voltage : 3750 Vrms
Maximum Operating Temperature : + 100 C
Output Type : Open Collector
Package / Case : DIP-8
Maximum Propagation Delay Time : 350 ns
Maximum Forward Diode Voltage : 1.7 V
Maximum Forward Diode Current : 10 mA


Specifications

• Totem Pole Output with positive I/O logic
  Eliminates additional pull-up resistors and inverter I/O circuitries
• Wide Voltage Supply Range
  4.5V to 20V - wider selection of application
• Wide Temperature Range
  -40 to 100°C temperature range - for FAST IPM application over industrial temperature range
• High CMR
  30 kV/ms at Vcm = 1000V helps to ensure data integrity during noisy environment and voltage surges
• Regulatory safety standards approvals from IEC, UL and CSA

Description

The ACPL-4800 fast speed optocoupler contains a GaAsP LED and photo detector with built-in Schmitt trigger to provide logic-compatible waveforms, eliminating the need for a pull up resistor and allows for direct drive Intelligent Power Module or gate drive.

Functional Diagram

Parameters:

Technical/Catalog Information	ACPL-4800-000E
Vendor	Avago Technologies US Inc.
Category	Isolators
Mounting Type	Through Hole
Package / Case	8-DIP
Isolation Voltage	3750Vrms
Configuration	1, One Direction
Input Type	DC
Output Type	Push-Pull, Totem-Pole
Data Rate	5Mbs
Current - Output/Channel	50mA
Packaging	Tube
Lead Free Status	Lead Free
RoHS Status	RoHS Compliant
Other Names	ACPL 4800 000E ACPL4800000E
