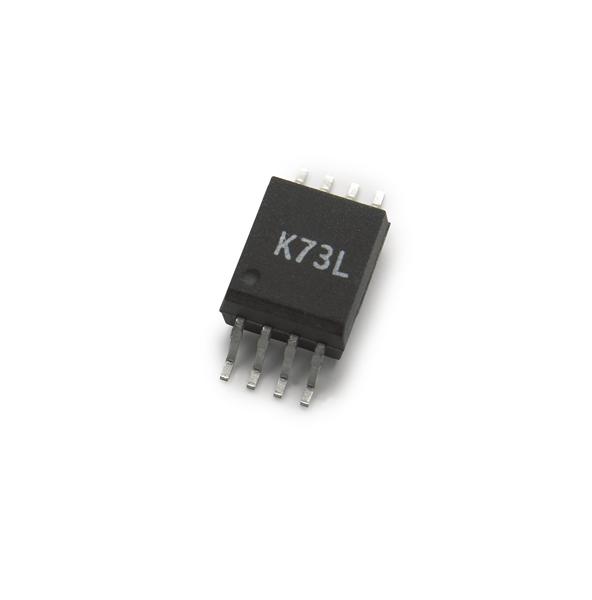

ACPL-K73L-000E

Current Transfer Ratio :
Maximum Input Diode Current :
Maximum Reverse Diode Voltage : 5 V
Minimum Operating Temperature : - 40 C
Packaging : Tube
Maximum Baud Rate : 15 MBps
Maximum Operating Temperature : + 105 C
Maximum Forward Diode Voltage : 1.85 V
Maximum Power Dissipation : 600 mW
Package / Case : SSO-8


Specifications

• Operate at wide supply voltages
• Output goes low when the power is loss - to prevent any output glitch at the recovery of power supply
• Small footprint- save PCB board space.
• Excellent speed performance
• Low input current and Idd2, reduces power consumption
• Non-inverting output
• CMOS output- eliminate the need of output pull-up resistors

Description

The dual-channel ACPL-K73L  is a 15 MBd CMOS optocoupler in a stretched SO8 package. The  optocouplers utilize the latest CMOS IC technology to achieve outstanding performance with very low power consumption.

The basic building blocks of the ACPL-K73L are high speed LEDs and CMOS detector ICs. Each detector incorporates an integrated photodiode, a high speed transimpedance amplifier, and a voltage comparator with an output driver.

ACPL-W70L-000E and ACPL-K73L-000E in ST Microelectronics' 16-bit PLC Digital Input Reference Design.
