General Description
ACST2 General Description
The ACST2 series belongs to the AC power switch family built around the ASD technology. This high performance device is adapted to home appliances or industrial systems and drives loads up to 2 A.
This ACST2 switch embeds a Triac structure with a high voltage clamping device to absorb the inductive turn-off energy and withstand line transients such as those described in the IEC 61000-4-5 standards. The component needs a low gate current to be activated (IGT < 10 mA) and in the mean time provides a high electrical noise immunity such as those described in the IEC 61000-4-4 standards.
ACST2 Maximum Ratings
|
Symbol |
Parameter |
Value |
Unit | ||
|
I T RMS) |
RMS on-state current (full sine wave) |
TO-220FPAB |
Tc = 105° C |
2 |
A |
|
DPAK |
Tc = 110 °C | ||||
|
ITSM |
Non repetitive surge peak on-state current (full cycle sine wave, TJ initial = 25° C) |
F = 60 Hz |
t = 16.7 ms |
8.4 | |
|
F =50 Hz |
t = 20 ms |
8.0 | |||
|
I²t |
I²t Value for fusing |
tp = 10 ms |
0.5 |
A²s | |
|
dI/dt |
Critical rate of rise of on-state current IG = 2 x IGT, tr = 100 ns |
F = 120 Hz |
Tj = 125° C |
50 |
A/s |
|
V PP (1) |
Non repetitive line peak mains voltage (1) |
Tj = 25° C |
2 |
kV | |
|
P G(AV) |
Average gate power dissipation |
Tj = 125° C |
0.1 |
W | |
|
PGM |
Peak gate power dissipation (tp = 20 s) |
Tj = 125° C |
10 |
W | |
|
IGM |
Peak gate current (tp = 20 s) |
Tj = 125° C |
1.6 |
A | |
|
T stg Tj |
Storage junction temperature range Operating junction temperature range |
-40 to +150 -40 to +125 |
° C | ||
|
Tl |
Maximum lead soldering temperature during 10 s (at 3 mm from plastic case) |
260 |
° C | ||
ACST2 Typical Application
`AC ON/OFF static switching in appliances & industrial control systems
`Drive of low power highly resistive or inductive loads like:
solenoid,
pump, fan, micro-motor
`Drive of low power highly resistive or inductive loads like:
solenoid,
pump, fan, micro-motor
ACST2-8SB-TR
PDF/DataSheet Download
- Datasheet: ACST2-8SB-TR
- File Size: 165015 KB
- Manufacturer: STMICROELECTRONICS
- Click here to Download
- ·ACS00D
- INTERSIL [Intersil Corporation]
- Radiation Hardened Quad 2-Input NAND Gate
- 70193 KB
- ·ACS00DMSR
- INTERSIL [Intersil Corporation]
- Radiation Hardened Quad 2-Input NAND Gate
- 70193 KB
- ·ACS00HMSR
- INTERSIL [Intersil Corporation]
- Radiation Hardened Quad 2-Input NAND Gate
- 70193 KB
- ·ACS00K
- INTERSIL [Intersil Corporation]
- Radiation Hardened Quad 2-Input NAND Gate
- 70193 KB
- ·ACS00KMSR
- INTERSIL [Intersil Corporation]
- Radiation Hardened Quad 2-Input NAND Gate
- 70193 KB
- ·ACS00MS
- INTERSIL [Intersil Corporation]
- Radiation Hardened Quad 2-Input NAND Gate
- 70193 KB
- ·ACS02D
- INTERSIL [Intersil Corporation]
- Radiation Hardened Quad 2-Input NOR Gate
- 51530 KB
- ·ACS02K
- INTERSIL [Intersil Corporation]
- Radiation Hardened Quad 2-Input NOR Gate
- 51530 KB
ACST2 Relative Products
ACST12-7ST
IC AC POWER SWITCH 12A TO-220AB

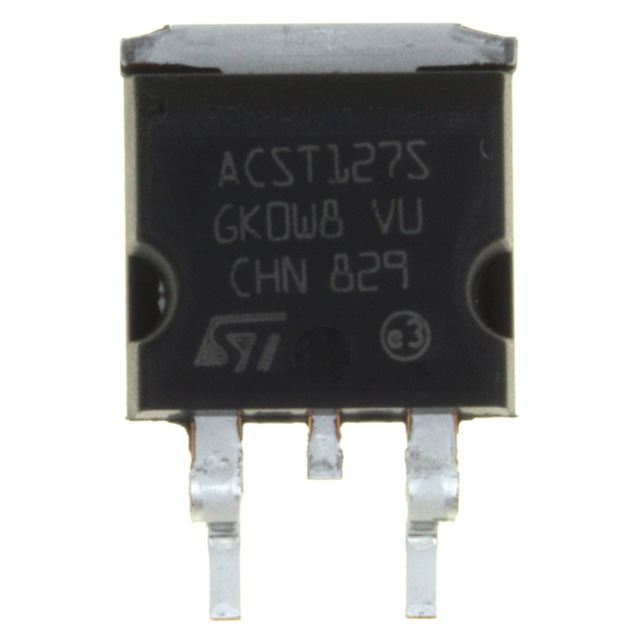

ACST12-7SG-TR
IC AC POWER SWITCH 12A D2PAK
ACST12-7SG
IC AC PWR SW 700V 12A D2PAK
ACST12-7CT
IC AC POWER SWITCH 12A TO-220AB

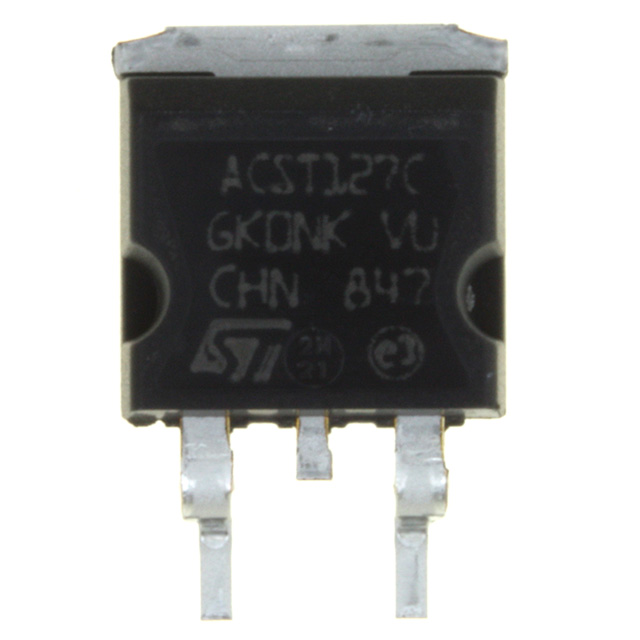

ACST12-7CG-TR
