ACT4075

Features: · 2.5A Output Current· Up to 95% Efficiency· 4.5V to 32V Input Range· 6µA Shutdown Supply Current· 410kHz Switching Frequency· Adjustable Output Voltage· Cycle-by-Cycle Current Limit Protection· Thermal Shutdown Protection· Internal Soft Start Function· Frequency Fold Back at Short...

product image

ACT4075 Picture
See larger image
SeekIC No. : 004267990 Detail

ACT4075: Features: · 2.5A Output Current· Up to 95% Efficiency· 4.5V to 32V Input Range· 6µA Shutdown Supply Current· 410kHz Switching Frequency· Adjustable Output Voltage· Cycle-by-Cycle Current Limit...

ACT4075 Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
ACT4075
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2024/4/28

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

·  2.5A Output Current
·  Up to 95% Efficiency
·  4.5V to 32V Input Range
·  6µA Shutdown Supply Current
·  410kHz Switching Frequency
·  Adjustable Output Voltage
·  Cycle-by-Cycle Current Limit Protection
·  Thermal Shutdown Protection
·  Internal Soft Start Function
·  Frequency Fold Back at Short Circuit
·  Stability with Wide Range of Capacitors, Including Low ESR Ceramic Capacitors
·  SOP-8/EP (Exposed Pad) Package


Application

·  TFT LCD Monitors or Televisions and HDTV
·  Portable DVD Players
·  Car-Powered or Battery-Powered Equipment
·  Set-Top Boxes
·  Telecom Power Supplies
·  DSL and Cable Modems and Routers

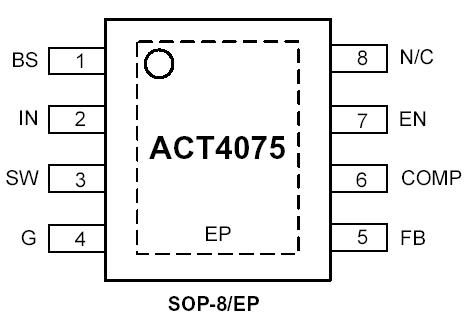

Pinout

Connection Diagram


Specifications

PARAMETER VALUE UNIT
IN to G

EN to G

SW to G

BS to SW

FB, COMP to G

Continuous SW Current

Junction to Ambient Thermal Resistance (JA)

Maximum Power Dissipation

Operating Junction Temperature

Storage Temperature

Lead Temperature (Soldering, 10 sec)		 -0.3 to +34

-0.3 to VIN + 0.3

-1 to VIN + 1

-0.3 to +8

-0.3 to 6

Internally limited

46

1.8

-40 to 150

-55 to 150

300 		V

V

V

V

A

°C/W

W

°C

°C

°C

V
Do not exceed these limits to prevent damage to the device. Exposure to absolute maximum rating conditions for long periods may affect device reliability.


Description

The ACT4075 is a current-mode step-down DC/DC converter that generates up to 2.5A output current at 410kHz switching frequency. The device utilizes Active-Semi's proprietary ISOBCD30 process for operation with input voltage up to 32V.

Consuming only 6A in shutdown mode, the ACT4075 is highly efficient with peak efficiency at 95% when in operation. Protection features include cycle-by-cycle current limit, thermal shutdown, and frequency fold back at short circuit. The device also includes an internal soft start function to prevent overshoot.

The ACT4075 is available in SOP-8/EP exposed pad package and requires very few external devices for operation.
