Part Number: AD120









Description: AD120 is a gate driver for TFT LCD panel. There are 258 outputs in the chip. Three-level output allows...


Urgent Purchase

AD120 General Description


AD120 is a gate driver for TFT LCD panel. There are 258 outputs in the chip. Three-level output allows voltage  correction for better switching noise rejection. It can be used for XGA / SXGA panels.

AD120 Maximum Ratings

Parameter
Symbol
Ratings
Unit
Supply Voltage
VDD
-0.3 ~ +7.0
V
Supply Voltage
VH
-0.3 ~ 42.0
V
Supply Voltage
VL
-20.0 ~ +0.3
V
Supply Voltage
VOFF
VL-0.3 ~ VL+11.0
V
Supply Voltage
VH-VL
-0.3 ~ 42.0
V
Input Voltage
VIN
-0.3 ~ VDD+0.3
V
Storage Temperature
Tstg
-55 ~ 125
°C

AD120 Features

· TFT LCD gate driver
· 3-level / 258 outputs
· 40V max. for each output
· -15V min. for each output
· 2.7V~3.6V logic input/output level
· Bi-directional data shift control
· Output waveform control
· TCP available

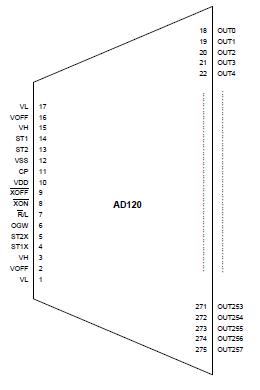

AD120 Connection Diagram

AD120 Connection Diagram

AD120 datasheet

AD120
PDF/DataSheet Download
