AD1819B
-
Suppliers
DataSheet
General Description
AD1819B Maximum Ratings
Power Supplies
Analog (AVDD)..........................................0.3V to 6.0 V
Digital (DVDD)............................................0.3V to 6.0 V
Input Current (Except Supply Pins)..................±10.0 mA
Analog Input Voltage (Signal Pins) ....0.3 AVDD + 0.3 V
Digital Input Voltage (Signal Pins) .....0.3 DVDD + 0.3 V
Ambient Temperature (Operating) .........40°C +85 °C
Storage Temperature ...........................65 °C+150 °C
*Stresses greater than those listed under Absolute Maximum Ratings may cause permanent damage to the device. This is a stress rating only; functional operation of the device at these or any other conditions above those indicated in the operational section of this specification is not implied. Exposure to absolute maximum rating conditions for extended periods may affect device reliability.
AD1819B Features
`Fully Compliant AC'97 Analog I/O Component
`48-Terminal LQFP Package
`Multibit Converter Architecture for Improved S/N Ratio >90 dB
`16-Bit Stereo Full-Duplex Codec
`Four Analog Line-Level Stereo Inputs for Connection from LINE, CD, VIDEO, and AUX
`Two Analog Line-Level Mono Inputs for Speakerphone and PC BEEP
`Mono MIC Input Switchable from Two External Sources
`High Quality CD Input with Ground
`Sense Stereo Line Level Output
`Mono Output for Speakerphone
`Power Management Support
`48-Terminal LQFP Package
`Multibit Converter Architecture for Improved S/N Ratio >90 dB
`16-Bit Stereo Full-Duplex Codec
`Four Analog Line-Level Stereo Inputs for Connection from LINE, CD, VIDEO, and AUX
`Two Analog Line-Level Mono Inputs for Speakerphone and PC BEEP
`Mono MIC Input Switchable from Two External Sources
`High Quality CD Input with Ground
`Sense Stereo Line Level Output
`Mono Output for Speakerphone
`Power Management Support

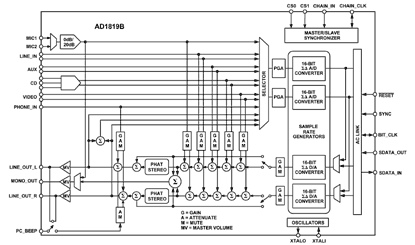

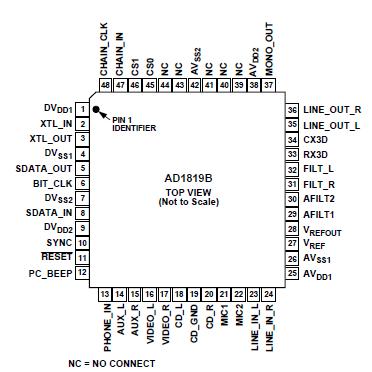

AD1819B Connection Diagram
AD1819B
PDF/DataSheet Download
- Datasheet: AD1819B
- File Size: 251564 KB
- Manufacturer: AD [Analog Devices]
- Click here to Download
