AD1859

Features: `Complete, Low Cost Stereo DAC System in a Single Die Package`Variable Rate Oversampling Interpolation Filter`Multibit SD Modulator with Triangular PDF Dither`Discrete and Continuous Time Analog Reconstruction Filters`Extremely Low Out-of-Band Energy`64 Step (1 dB/Step) Analog Attenuator...

product image

AD1859 Picture
See larger image
SeekIC No. : 004268409 Detail

AD1859: Features: `Complete, Low Cost Stereo DAC System in a Single Die Package`Variable Rate Oversampling Interpolation Filter`Multibit SD Modulator with Triangular PDF Dither`Discrete and Continuous Time ...

AD1859 Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
AD1859
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2024/4/28

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

`Complete, Low Cost Stereo DAC System in a Single Die Package
`Variable Rate Oversampling Interpolation Filter
`Multibit SD Modulator with Triangular PDF Dither
`Discrete and Continuous Time Analog Reconstruction Filters
`Extremely Low Out-of-Band Energy
`64 Step (1 dB/Step) Analog Attenuator with Mute
`Buffered Outputs with 2 kV Output Load Drive
`Rejects Sample Clock Jitter
`94 dB Dynamic Range, 88 dB THD+N Performance
`Option for Analog De-emphasis Processing with
`External Passive Components
`60.18 Maximum Phase Linearity Deviation
`Continuously Variable Sample Rate Support
`Digital Phase Locked Loop Based Asynchronous Master Clock
`On-Chip Master Clock Oscillator, Only External Crystal
`Is Required
`Power-Down Mode
`Flexible Serial Data Port (I2S-Justified, Left-Justified,
`Right-Justified and DSP Serial Port Modes)
`SPI* Compatible Serial Control Port
`Single +5 V Supply
`28-Pin SOIC and SSOP Packages






Application

·Digital Cable TV and Direct Broadcast Satellite Set-Top
·Decoder Boxes
·Digital Video Disc, Video CD and CD-I Players
·High Definition Televisions, Digital Audio Broadcast
·Receivers
·CD, CD-R, DAT, DCC, ATAPI CD-ROM and MD Players
·Digital Audio Workstations, Computer Multimedia
·Products

·Digital Cable TV and Direct Broadcast Satellite Set-Top
·Decoder Boxes
·Digital Video Disc, Video CD and CD-I Players
·High Definition Televisions, Digital Audio Broadcast
·Receivers
·CD, CD-R, DAT, DCC, ATAPI CD-ROM and MD Players
·Digital Audio Workstations, Computer Multimedia
·Products




Pinout

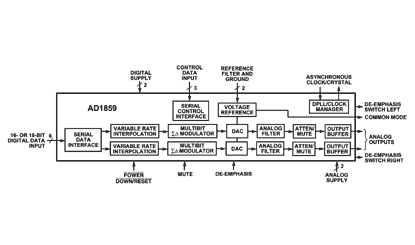

AD1859 Diagram

Connection Diagram

Connection Diagram




Specifications

DAC DNR (dB) 94dB
DAC THD+N @ 1 kHz (-3dB) 88dB
Product Description Stereo, Single Supply 18-bit Integrated Sigma-Delta D/A


Min Max Units
DVDD to DGND
AVDD to AGND
Digital Inputs
Analog Outputs
AGND to DGND
Reference Voltage
Soldering		 0.3
0.3
DGND 0.3
AGND 0.3
0.3

6
6
DVDD + 0.3
AVDD + 0.3
0.3
(AVDD + 0.3)/2
+300
10		 V
V
V
V
V

°C
sec



Min Max Units
DVDD to DGND
AVDD to AGND
Digital Inputs
Analog Outputs
AGND to DGND
Reference Voltage
Soldering		 0.3
0.3
DGND 0.3
AGND 0.3
0.3

6
6
DVDD + 0.3
AVDD + 0.3
0.3
(AVDD + 0.3)/2
+300
10		 V
V
V
V
V

°C
sec






Description

The AD1859 is a complete 16-/18-bit single-chip stereo digital audio play-back subsystem. It comprises a variable rate digital interpolation filter, a revolutionary multibit sigma-delta
