AD1896
-
Suppliers
DataSheet
General Description
AD1896 Maximum Ratings
| Parameter | Min | Max | Unit |
| Power Supplies | |||
| VDD_CORE | 0.3 | +3.6 | V |
| VDD_IO | 0.3 | +6.0 | V |
| Digital Inputs | |||
| Input Current | ±10 | mA | |
| Input Voltage | DGND 0.3 | VDD_IO + 0.3 | V |
| Ambient Temperature (Operating) | 40 | +105 | C |
AD1896 Features
Automatically Senses Sample Frequencies
No Programming Required
Attenuates Sample Clock Jitter
3.3 V5 V Input and 3.3 V Core Supply Voltages
Accepts 16-/18-/20-/24-Bit Data
Up to 192 kHz Sample Rate
Input/Output Sample Ratios from 7.75:1 to 1:8
Bypass Mode
Multiple AD1896 TDM Daisy-Chain Mode
Multiple AD1896 Matched-Phase Mode
142 dB Signal-to-Noise and Dynamic Range
(A-Weighted, 20 Hz20 kHz BW)
Up to 133 dB THD + N
Linear Phase FIR Filter
Hardware Controllable Soft Mute
Supports 256 fS, 512 fS, or 768 fS Master
Mode Clock
Flexible 3-Wire Serial Data Port with Left-Justified,I2S, Right-Justified (16-,18-, 20-, 24-Bits), and TDM Serial Port Modes
Master/Slave Input and Output Modes
28-Lead SSOP Plastic Package
No Programming Required
Attenuates Sample Clock Jitter
3.3 V5 V Input and 3.3 V Core Supply Voltages
Accepts 16-/18-/20-/24-Bit Data
Up to 192 kHz Sample Rate
Input/Output Sample Ratios from 7.75:1 to 1:8
Bypass Mode
Multiple AD1896 TDM Daisy-Chain Mode
Multiple AD1896 Matched-Phase Mode
142 dB Signal-to-Noise and Dynamic Range
(A-Weighted, 20 Hz20 kHz BW)
Up to 133 dB THD + N
Linear Phase FIR Filter
Hardware Controllable Soft Mute
Supports 256 fS, 512 fS, or 768 fS Master
Mode Clock
Flexible 3-Wire Serial Data Port with Left-Justified,I2S, Right-Justified (16-,18-, 20-, 24-Bits), and TDM Serial Port Modes
Master/Slave Input and Output Modes
28-Lead SSOP Plastic Package
AD1896 Typical Application
Home Theater Systems, Studio Digital Mixers,Automotive Audio Systems, DVD, Set-Top Boxes,Digital Audio Effects Processors, Studio-to-Transmitter Links, Digital Audio Broadcast Equipment, DigitalTape Varispeed Applications

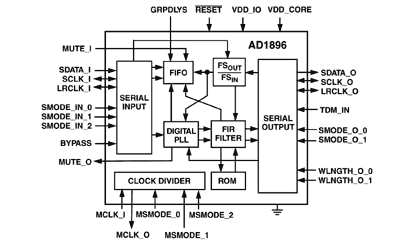

AD1896 Connection Diagram
AD1896
PDF/DataSheet Download
- Datasheet: AD1896
- File Size: 1334247 KB
