General Description
AD1981HD Maximum Ratings
| Power Supply | Min | Max | Unit |
| Digital (DVDD) Analog (AVDD) Input Current (Except Supply Pins) Analog Input Voltage (Signal Pins) Digital Input Voltage (Signal Pins) Ambient Temperature (Operating) Commercial Industrial Storage Temperature |
−0.3 −0.3 −0.3 −0.3 0°C 40°C −65°C |
+3.6 +6.0 ±10.0 AVDD + 0.3 DVDD + 0.3 70°C +85°C +150°C |
V V mA V V °C °C °C |
AD1981HD Features
·2 DAC channels: 16-, 20-, or 24-bit
·2 ADC channels: 16- or 20-bit
·HD audio sample rates
·8 kHz, 11.025 kHz, 16 kHz, 22.05 kHz, 32 kHz, 44.1 kHz, 48 kHz
·Greater than 90 dB dynamic range
·S/PDIF output: 32 kHz, 44.1 kHz or 48 kHz, 16- or 24-bit
·Digital beep and analog PC beep pass-through
·Integrated headphone amplifiers on two ports
·Port retasking
·Selectable microphone and line inputs
·Full analog mixer
·Legacy inputs: CD and auxiliary inputs
External amplifier power-down (EAPD)
48-pin, Pb-free LQFP
·2 ADC channels: 16- or 20-bit
·HD audio sample rates
·8 kHz, 11.025 kHz, 16 kHz, 22.05 kHz, 32 kHz, 44.1 kHz, 48 kHz
·Greater than 90 dB dynamic range
·S/PDIF output: 32 kHz, 44.1 kHz or 48 kHz, 16- or 24-bit
·Digital beep and analog PC beep pass-through
·Integrated headphone amplifiers on two ports
·Port retasking
·Selectable microphone and line inputs
·Full analog mixer
·Legacy inputs: CD and auxiliary inputs
External amplifier power-down (EAPD)
48-pin, Pb-free LQFP

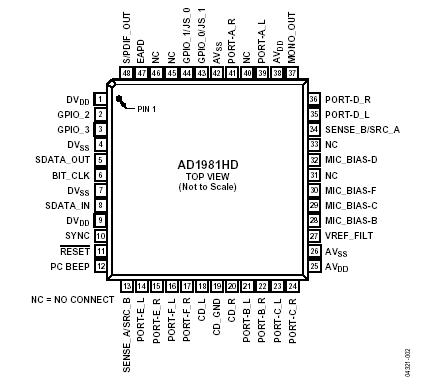

AD1981HD Connection Diagram
