Part Number: AD1983





Package Cooled: new



Description: The AD1983 audio codec and ADI device drivers interface directly with core logic chipsets supporting the HD Audio 1.0 specification. Th...


Urgent Purchase

AD1983 General Description



The AD1983 audio codec and ADI device drivers interface directly with core logic chipsets supporting the HD Audio 1.0 specification. This solution is promoted under the SoundMAX brand name and

AD1983 Maximum Ratings

# of ADCs 2
# DAC 2
ADC DNR (dB) 85dB
DAC DNR (dB) 90dB

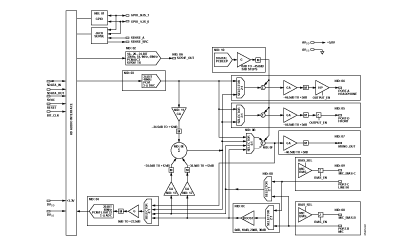

AD1983 Connection Diagram

AD1983 Connection Diagram

AD1983 datasheet
