Purchase AD203, In-stock AD203 From SeekIC.
MFG:ADI D/C:09
Part Number: AD203
MFG: ADI
D/C: 09
Description: The AD203SN is designed and built for use in hostile operation conditions. The AD203SN is also an integral member of Analog Devices' A...
- Table of contents:
AD203
-
Suppliers
DataSheet
General Description
AD203 General Description
The AD203SN is designed and built for use in hostile operation conditions. The AD203SN is also an integral member of Analog Devices' AD200 Series of low cost, high performance, transformer coupled
AD203 Maximum Ratings
| # Ports/Ch | 2 |
| Supply Voltage (V) | +15V |
| Supply Current (max) | 20mA |
| Input Range (V) | ±10V |
| Isolation Rejection (dB) | 106dB |
| Bandwidth G = 1 (kHz) | 10kHz |
| Output Amplifier | X |
| Nonlinearity (%) | 0.025% |
| Temperature Range (°C) | -55 to +125 |

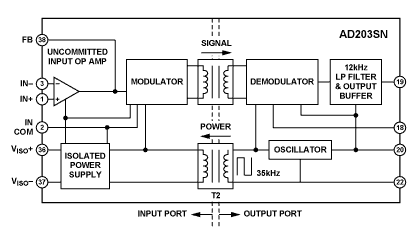

AD203 Connection Diagram
AD203
