Purchase AD22151G, In-stock AD22151G From SeekIC.
MFG:ADI D/C:09
- Table of contents:
AD22151G
-
Suppliers
DataSheet
General Description
AD22151G Maximum Ratings
| Supply Voltage (V) | 5V |
| Supply Current | 6mA |
| Input Sensitivity(uV/G/V) | 160 |
| Input Range (V) | (Vcc/2)±0.5 |
| Linear Output range(%Vcc) | 10 to 90 |
| Total Output Range | 10 to 90 |
| Nonlinear (10-90% output) | 0.1 (% FS) |
| Bandwidth (kHz | 5.7kHz |
| Output Drive Current (mA) | 1mA |
| Offset Error (in Gauss) | -6 |
| Package | 8-SOIC |
| Temp Range (°C) | -40 to 150 |

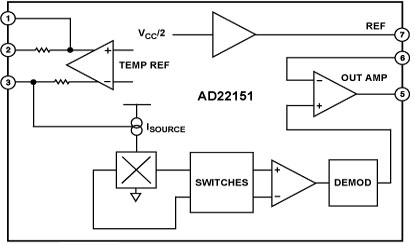

AD22151G Connection Diagram
