Purchase AD260, In-stock AD260 From SeekIC.
MFG:AD Package Cooled:SMD

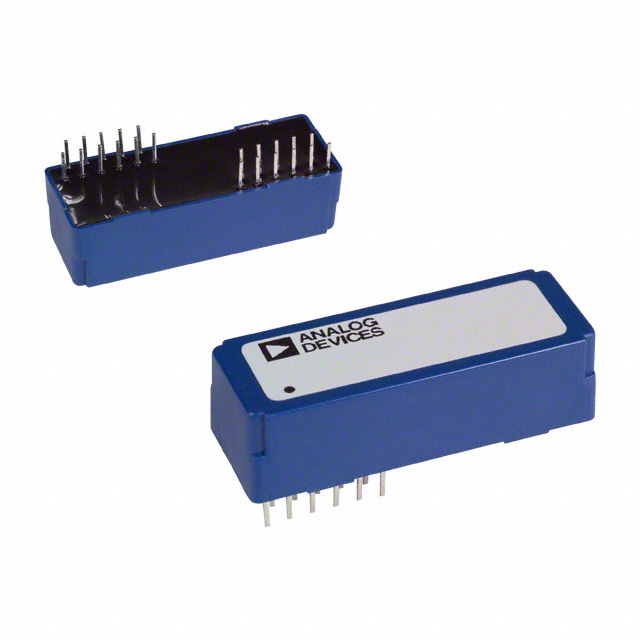

Part Number: AD260
MFG: AD
Package Cooled: SMD
Description: The AD260 is designed using Analog Devices new IsoLogic circuit architecture to isolate five digital c...
- Table of contents:
AD260
-
Suppliers
DataSheet
General Description
AD260 General Description
The AD260 is designed using Analog Devices new IsoLogic circuit architecture to isolate five digital control signals to/ from a microcontroller and its related field I/O components. Six models allow all I/O combinations from five input lines to five output lines, including combinations in between. Every AD260 effectively replaces up to five opto-isolators while also providing the 1.5 W transformer for a 3.5 kV isolated dc-dc power supply circuit.
Each line of the AD260 has a bandwidth of 20 MHz (min) with a propagation delay of only 14 ns, which allows for extremely fast data transmission. Output waveform symmetry is maintained to within ±1 ns of the input so the AD260 can be used to accurately isolate time-based PWM signals.
All field or system output pins of the AD260 can be set to a high resistance three-state level by use of the two enable pins. A field output three-stated offers a convenient method of presetting logic levels at power-up by use of pull-up/down resistors. System side outputs being three-stated allows for easy multiplexing of multiple AD260s.
AD260 Maximum Ratings
| Parameter | Conditions | Min Typ Max | Units |
| Supply Voltage (+5 V dcSYS & FLD) DC Input Voltage (VIN MAX) DC Output Voltage (VOUT MAX) Clamp Diode Input Current (IIK) Clamp Diode Output Current (IOK) Output DC Current, per Pin (IOUT) DC Current, VCC or GND (ICC or IGND) Storage Temperature (TSTG) Lead Temperature (Soldering, 10 sec) Electrostatic Protection (VESD) |
Referred to +5 V dcSYS & FLD and 5 V RTNSYS & FLD Respectively Referred to +5 V RTNSYS & FLD and 5 V dcSYS & FLD Respectively For VI < 0.5 V or VI > 5 V RTNSYS & FLD +0.5 V For VO < 0.5 V or VO > 5 V RTNSYS & FLD +0.5 V Per MIL-STD-883, Method 3015 |
0.5 +6.0 0.5 +0.5 0.5 +0.5 25 +25 25 +25 25 +25 50 +50 40 +85 +300 4.5 5 |
V |
AD260 Features
`IsoLogic™ Circuit Architecture
`Isolation Test Voltage: To 3.5 kV rms
`Five Isolated Logic Lines: Available in Six I/O Configurations
`Logic Signal Bandwidth: 20 MHz (Min), 40 mbps (NRZ)
`Isolated Power Transformer: 37 V p-p, 1.5 W Max
`CMV Transient Immunity: 10 kV/ms Min
`Waveform Edge Transmission Symmetry: 61 ns
`Field and System Output Enable/Three-State Functions
`Performance Rated Over 258C to +858C
`UL1950, IEC950, EN60950 Certification, Pending
`Isolation Test Voltage: To 3.5 kV rms
`Five Isolated Logic Lines: Available in Six I/O Configurations
`Logic Signal Bandwidth: 20 MHz (Min), 40 mbps (NRZ)
`Isolated Power Transformer: 37 V p-p, 1.5 W Max
`CMV Transient Immunity: 10 kV/ms Min
`Waveform Edge Transmission Symmetry: 61 ns
`Field and System Output Enable/Three-State Functions
`Performance Rated Over 258C to +858C
`UL1950, IEC950, EN60950 Certification, Pending
AD260 Typical Application
·PLC/DCS Analog Input and Output Cards
·Communications Bus Isolation
·General Data Acquisition Applications
·IGBT Motor Drive Controls
·High Speed Digital I/O Ports
·Communications Bus Isolation
·General Data Acquisition Applications
·IGBT Motor Drive Controls
·High Speed Digital I/O Ports

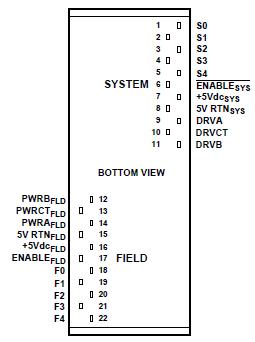

AD260 Connection Diagram
AD260
PDF/DataSheet Download
- Datasheet: AD260
- File Size: 168503 KB
- Manufacturer: AD [Analog Devices]
- Click here to Download
- ·AD202
- AD [Analog Devices]
- Low Cost, Miniature Isolation Amplifiers
- 422810 KB
- ·AD2020
- Analog Devices
- AD2020
- 225614 KB
- ·AD202J
- AD [Analog Devices]
- Low Cost, Miniature Isolation Amplifiers
- 422810 KB
- ·AD202JN
- AD [Analog Devices]
- Low Cost, Miniature Isolation Amplifiers
- 422810 KB
- ·AD202JY
- AD [Analog Devices]
- Low Cost, Miniature Isolation Amplifiers
- 422810 KB
- ·AD202K
- AD [Analog Devices]
- Low Cost, Miniature Isolation Amplifiers
- 422810 KB
- ·AD202KN
- AD [Analog Devices]
- Low Cost, Miniature Isolation Amplifiers
- 422810 KB
- ·AD202KY
- AD [Analog Devices]
- Low Cost, Miniature Isolation Amplifiers
- 422810 KB
AD260 Relative Products
AD246KN
The AD246KN is one member of the AD246 family which designed as one kind of compact, inexpensive clock driver that can be used to obtain the required clock from a single 15 V supply.This device can operate at least 32 AD204s at the rated minimum supply volta...

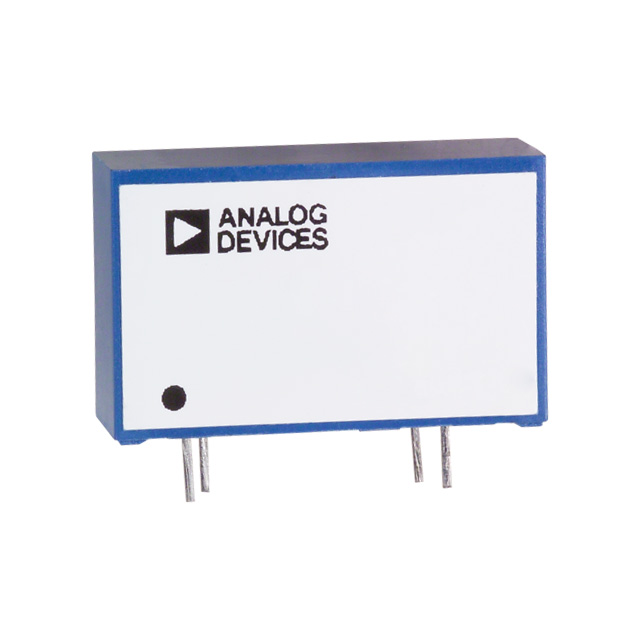

AD246JY
