Purchase AD2S1205, In-stock AD2S1205 From SeekIC.
MFG:ADI D/C:09
Part Number: AD2S1205
MFG: ADI
D/C: 09
Description: The AD2S1205 is a complete 12-bit resolution tracking resolver-to-digital converter that contains an o...
- Table of contents:
AD2S1205
-
Suppliers
DataSheet
General Description
AD2S1205 General Description

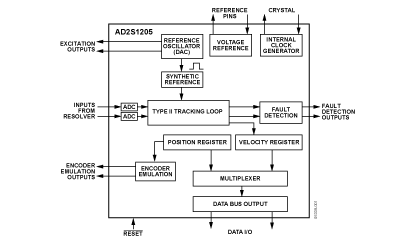

The AD2S1205 is a complete 12-bit resolution tracking resolver-to-digital converter that contains an on-board programmable sinusoidal oscillator providing sine wave excitation for resolvers.
The converter accepts 3.15 V p-p ± 27% input signals on the Sin and Cos inputs. A Type II tracking loop is employed to track the inputs and convert the input Sin and Cos information into a digital representation of the input angle and velocity. The maximum tracking rate is a function of the external clock frequency. The performance of the AD2S105 is specified across a frequency range of 8.192 MHz ± 25%, allowing a maximum tracking rate of 1250 rps.
AD2S1205 Maximum Ratings
Supply Voltage (VDD)............. −0.3 V to +7.0 V
Supply Voltage (AVDD)............ −0.3 V to +7.0 V
Input Voltage...............−0.3 V to VDD + 0.3 V
Output Voltage Swing......... −0.3 V to VDD + 0.3 V
Operating Temperature Range (Ambient) −40°C to +125°C
Storage Temperature Range .. .... −65°C to +150°C
Supply Voltage (AVDD)............ −0.3 V to +7.0 V
Input Voltage...............−0.3 V to VDD + 0.3 V
Output Voltage Swing......... −0.3 V to VDD + 0.3 V
Operating Temperature Range (Ambient) −40°C to +125°C
Storage Temperature Range .. .... −65°C to +150°C
AD2S1205 Features
·Complete monolithic resolver-to-digital converter (RDC)
·Parallel and serial 12-bit data ports
·System fault detection
·±11 arc minutes of accuracy
·Input signal range: 3.15 V p-p ± 27%
·Absolute position and velocity outputs
·1250 rps maximum tracking rate, 12-bit resolution
·Incremental encoder emulation (1024 pulses/rev)
·Programmable sinusoidal oscillator on board
·Single-supply operation (5.00 V ± 5%)
·−40°C to +125°C temperature rating
·44-lead LQFP
·4 kV ESD protection
·Parallel and serial 12-bit data ports
·System fault detection
·±11 arc minutes of accuracy
·Input signal range: 3.15 V p-p ± 27%
·Absolute position and velocity outputs
·1250 rps maximum tracking rate, 12-bit resolution
·Incremental encoder emulation (1024 pulses/rev)
·Programmable sinusoidal oscillator on board
·Single-supply operation (5.00 V ± 5%)
·−40°C to +125°C temperature rating
·44-lead LQFP
·4 kV ESD protection
AD2S1205 Typical Application
·Automotive motion sensing and control
·Hybrid-electric vehicles
·Electric power steering
·Integrated starter generator/alternator
·Industrial motor control
·Process control
·Hybrid-electric vehicles
·Electric power steering
·Integrated starter generator/alternator
·Industrial motor control
·Process control
