Part Number: AD404M42VT
Description: The device CMOS Dynamic RAM organized as 4,194,304 words x 4 bits with extended data out access mode. It is fabricated ...
- Table of contents:
AD404M42VT
-
Suppliers
DataSheet
General Description
AD404M42VT General Description
The device CMOS Dynamic RAM organized as 4,194,304 words x 4 bits with extended data out access mode. It is fabricated with an advanced submicron CMOS technology and designed to operate from a single 3.3V oniy power supply. Low voltage operation is more suitable to be used on battery backup, portable electronic application. lt is packaged in JEDEC standard 26/24-pin plastic SOJ or TSOP(II).
AD404M42VT Maximum Ratings
|
Parameter |
Symbol |
Value |
Unit |
|
Voltage on any pin relative to Vss |
VT |
-0.5 to + 4.6 |
V |
|
Supply voltage relative to Vss |
VCC |
-0.5 to + 4.6 |
V |
|
Short circuit output current |
IOUT |
50 |
mA |
|
Power dissipation |
PD |
1.0 |
W |
|
Operating temperature |
TOPT |
0 to + 70 |
|
|
Storage temperature |
TSTG |
-55 to + 125 |
|
AD404M42VT Features
• Single 3.3V( %) only power supply
• High speed tRAC acess time: 50/60ns
• Low power dissipation
- Active mode : 432/396 mW (Mas)
- Standby mode: 0.54 mW (Mas)
• Extended - data - out(EDO) page mode access
• I/O level: CMOS level (Vcc = 3.3V)
• 2048 refresh cycle in 32 ms(Std.) or 128 ms(S-version)
• 4 refresh modesh:
- RAS only refresh
- CAS - before - RAS refresh
- Hidden refresh
- Self-refresh(S-version)
• High speed tRAC acess time: 50/60ns
• Low power dissipation
- Active mode : 432/396 mW (Mas)
- Standby mode: 0.54 mW (Mas)
• Extended - data - out(EDO) page mode access
• I/O level: CMOS level (Vcc = 3.3V)
• 2048 refresh cycle in 32 ms(Std.) or 128 ms(S-version)
• 4 refresh modesh:
- RAS only refresh
- CAS - before - RAS refresh
- Hidden refresh
- Self-refresh(S-version)

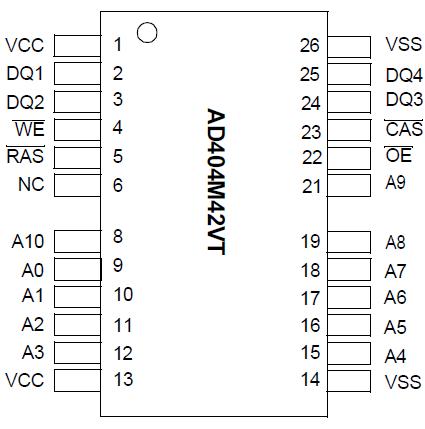

AD404M42VT Connection Diagram
AD404M42VTA-5
