General Description
AD45048 General Description
The AD45048 ADSL CPE line driver is a dual operational amplifier capable of driving high output current (230 mA); it features a rail-to-rail output stage that swings to within 0.5 V of the supply rails. The AD45048 rail-to-rail output stage surpasses the output voltage capability of typical emitterfollower output stages and can deliver up to 23 V p-p differentially from a single 12 V supply in ADSL CPE line driving applications. The low distortion, high output current and wide output dynamic range make the AD45048 ideal for driving upstream signals in ADSL CPE applications.
Fabricated with ADI's high speed XFCB-HV (eXtra Fast Complementary Bipolar-High Voltage) process, the high bandwidth and fast slew rate of the AD45048 keep distortion to a minimum while dissipating minimum power. The AD45048 is available in a standard 8-lead SOIC package that can operate from −40°C to +85°C.
AD45048 Maximum Ratings
Parameter Rating
Supply Voltage 26.4 V
Power Dissipation (TJMAX TA)/JA1
Storage Temperature −65°C to +125°C
Operating Temperature Range −40°C to +85°C
Lead Temperature Range 300°C
(Soldering 10 sec)
Junction Temperature 150°C
Supply Voltage 26.4 V
Power Dissipation (TJMAX TA)/JA1
Storage Temperature −65°C to +125°C
Operating Temperature Range −40°C to +85°C
Lead Temperature Range 300°C
(Soldering 10 sec)
Junction Temperature 150°C
AD45048 Features
Dual op amp
Voltage feedback
Wide supply range: from 3.3 V to 24 V
Rail-to-rail output
Output swing to within 0.5 V of supply rails @ 230 mA
23 V p-p differential, RLOAD of 50 from 12 V supply
High output current
Linear output current of 230 mA peak into 25
−68 dBc MTPR @ 15 dBm (100 telephone line)
Low noise
4.5 nV/Hz voltage noise density @ 100 kHz
1.5 pA/Hz current noise density @ 100 kHz
High speed
65 MHz bandwidth (AV = 1, −3 dB)
55 V/s slew rate (RLOAD = 25 )
Voltage feedback
Wide supply range: from 3.3 V to 24 V
Rail-to-rail output
Output swing to within 0.5 V of supply rails @ 230 mA
23 V p-p differential, RLOAD of 50 from 12 V supply
High output current
Linear output current of 230 mA peak into 25
−68 dBc MTPR @ 15 dBm (100 telephone line)
Low noise
4.5 nV/Hz voltage noise density @ 100 kHz
1.5 pA/Hz current noise density @ 100 kHz
High speed
65 MHz bandwidth (AV = 1, −3 dB)
55 V/s slew rate (RLOAD = 25 )
AD45048 Typical Application
Consumer xDSL modems
Twisted pair line drivers
ADSL CPE applications
(Drop in replacement for TS613ID and EL1519CS)
Audio applications
Twisted pair line drivers
ADSL CPE applications
(Drop in replacement for TS613ID and EL1519CS)
Audio applications

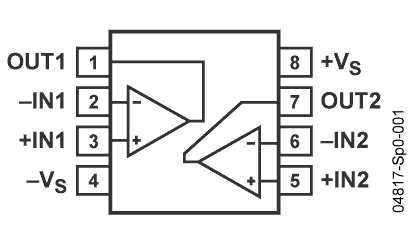

AD45048 Connection Diagram
AD45048
PDF/DataSheet Download
- Datasheet: AD45048
- File Size: 785416 KB
- Manufacturer: AD
- Click here to Download
