Purchase AD5063, In-stock AD5063 From SeekIC.
MFG:ADI D/C:09
Part Number: AD5063
MFG: ADI
D/C: 09
Description: The AD5063, a member of the nanoDAC? family, is a single full accurate 16-bit unbuffered voltage out DAC in a MSOP package. ...
- Table of contents:
AD5063
-
Suppliers
DataSheet
General Description
AD5063 General Description
The AD5063, a member of the nanoDAC? family, is a single full accurate 16-bit unbuffered voltage out DAC in a MSOP package.
The 16-bit DAC provides a maximum 1 LSB INL linearity
AD5063 Maximum Ratings
| Resolution (Bits) | 16bit |
| DAC Update Rate | 333kSPS |
| DAC Settling Time | 4s |
| # DAC Outputs | 1 |
| DAC Type | Voltage Out |
| DAC Input Format | Ser,SPI |
| Output FSR | (Bip Vref),(Uni Vref) |
| Ref Int/Ext | Ext |
| Supply Vnom | Single(+2.7 to +5.5),Single(+3),Single(+3.3),Single(+5) |
| Pwr Diss (Max) | 3.85mW |
| Package | SOP |

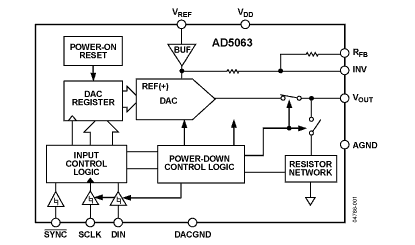

AD5063 Connection Diagram
AD5063
PDF/DataSheet Download
- Datasheet: AD5063
- File Size: 849841 KB
- Manufacturer: AD [Analog Devices]
- Click here to Download
