Part Number: AD5162
Package Cooled: 2800
Description: The AD5162 provides a compact 3 mm*4.9 mm packaged solution for dual 256-position adjustment applications.This device p...
- Table of contents:
AD5162
-
Suppliers
DataSheet
General Description
AD5162 General Description
The AD5162 provides a compact 3 mm*4.9 mm packaged solution for dual 256-position adjustment applications.This device performs the sanme electronic adjustment function as a3-terminal mechanical potentiometer.Available in four different end-to-end resistance values(2.5k,10k,50k,100k),this low temperature coefficient device is ideal for high accuracy and stability variable resistance adjustments.The wiper settings are controllable through an SPI digital interface.The resistance between the wiper and wither endpoint of the fixed resistor varies linearly with respect to the digital code transferred the RDAC latch.
Operating from a 2.7V to 5.5V power supply and consumung less than 6A allows the AD5162 to be used in portable battery-operated applications
For applications that program the ad5612 at the factory,analog devices offers device programming software running on windows nt/2000/xp operating systems.This software effectively replaces any external SPI controllers, which in turn enhances users'systems time-to-market. An AD5162 evaluationkit and software are available. The kit includes a cable and instruction manual.
AD5162 Maximum Ratings
| Parameter | Value |
| VDD to GND | 0.3 V to +7 V |
| VA, VB, VW to GND | VDD |
| Terminal Current, Ax to Bx, Ax to Wx, | |
|
Bx to Wx1 |
±20 mA ±5 mA |
| Digital Inputs and Output Voltage to GND | 0 V to 7 V |
| Operating Temperature Range | 40°C to +125°C |
| Maximum Junction Temperature (TJMAX) | 150°C |
| Storage Temperature | 65°C to +150°C |
| Lead Temperature (Soldering, 10 s) | 300°C |
| Thermal Resistance2 JA: MSOP-10 | 230°C/W |
AD5162 Features
2-channel, 256-position
End-to-end resistance: 2.5kΩ, 10 kΩ, 50 kΩ,100 kΩ
Compact MSOP-10 (3 mm ×4.9 mm) package
Fast settling time: t = 5 µs typical on power-up
Full read/write of wiper register
Power-on preset to midscale
Extra package address decode pin ADo
Computer software replaces µC in factory programming applications
Single supply: 2.7 V to 5.5 v
Low temperature coefficient: 35 ppm/°C
Low power: IDD= 6 µA max
Wide operating temperature: −40°C to +125°C
Evaluation board available
AD5162 Typical Application
Systems calibrations
Electronics level settings
Mechanical Trimmers® replacement in new designs
Permanent factory PCB settin
Transducer adjustment of pressure, temperature, position, chemical, and optical sensors
RF amplifier biasing
Automotive electronics adjustment
Gain control and offset a djustment

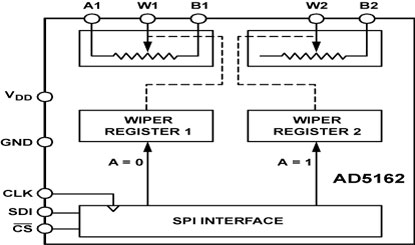

AD5162 Connection Diagram
AD5162
PDF/DataSheet Download
- Datasheet: AD5162
- File Size: 983597 KB
- Manufacturer: AD [Analog Devices]
- Click here to Download
