AD5165
-
Suppliers
DataSheet
General Description
AD5165 Maximum Ratings
VDD to GND 0.3 V to +7 V
VA, VB, VW to GND VDD
Maximum Current
IWB, IWA Pulsed ±20 mA
IWB Continuous (RWB 1 kΩ, A open)2 ±5 mA
IWA Continuous (RWA 1 kΩ, B open)2 ±5 mA
Digital Inputs and Output Voltage to GND 0 V to +7 V
Operating Temperature Range 40°C to +125°C
Maximum Junction Temperature (TJMAX) 150°C
Storage Temperature 65°C to +150°C
Lead Temperature (Soldering, 10 30 sec) 245°C
Thermal Resistance2JA: TSOT-8 200°C/W
VA, VB, VW to GND VDD
Maximum Current
IWB, IWA Pulsed ±20 mA
IWB Continuous (RWB 1 kΩ, A open)2 ±5 mA
IWA Continuous (RWA 1 kΩ, B open)2 ±5 mA
Digital Inputs and Output Voltage to GND 0 V to +7 V
Operating Temperature Range 40°C to +125°C
Maximum Junction Temperature (TJMAX) 150°C
Storage Temperature 65°C to +150°C
Lead Temperature (Soldering, 10 30 sec) 245°C
Thermal Resistance2JA: TSOT-8 200°C/W
AD5165 Features
Ultralow standby power IDD = 50 nA typical
256-position
End-to-end resistance 100 kΩ
Logic high voltage 1.8 V
Power supply 2.7 V to 5.5 V
Low temperature coefficient 35 ppm/°C
Compact thin 8-lead TSOT-8 (2.9 mm × 2.8 mm) package
Simple 3-wire digital interface
Wide operating temperature −40°C to +125°C
Pin-to-pin compatible to AD5160 with CS inverted
256-position
End-to-end resistance 100 kΩ
Logic high voltage 1.8 V
Power supply 2.7 V to 5.5 V
Low temperature coefficient 35 ppm/°C
Compact thin 8-lead TSOT-8 (2.9 mm × 2.8 mm) package
Simple 3-wire digital interface
Wide operating temperature −40°C to +125°C
Pin-to-pin compatible to AD5160 with CS inverted
AD5165 Typical Application
The AD5165 provides a compact 2.9 mm * 2.8 mm packaged solution for 256-position adjustment applications. These devices perform the same electronic adjustment function as mechanical potentiometers or variable resistors, with enhanced resolution, solid-state reliability, and superior low temperature coefficient performance. The AD5165' s supply voltage requirement is 2.7 V to 5.5 V, but its logic voltage requirement is 1.8 V to VDD. The AD5165 consumes very low quiescent power during standby mode and is ideal for battery-operated applications.
Wiper settings are controlled through a simple 3-wire interface. The interface is similar to the SPI® digital interface except for the inverted chip-select function that minimizes logic power consumption in the idling state. The resistance between the wiper and either endpoint of the fixed resistor varies linearly with respect to the digital code transferred into the wiper register. Operating from a 2.7 V to 5.5 V power supply and consuming less than 50 nA typical standby power allows use in battery-operated portable or remote utility device applications.
Wiper settings are controlled through a simple 3-wire interface. The interface is similar to the SPI® digital interface except for the inverted chip-select function that minimizes logic power consumption in the idling state. The resistance between the wiper and either endpoint of the fixed resistor varies linearly with respect to the digital code transferred into the wiper register. Operating from a 2.7 V to 5.5 V power supply and consuming less than 50 nA typical standby power allows use in battery-operated portable or remote utility device applications.

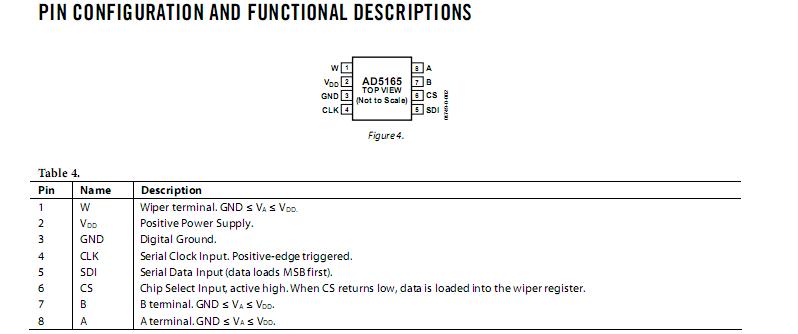

AD5165 Connection Diagram
AD5165
