Part Number: AD522
MFG: ADI
D/C: 09
Description: The AD522 is a precision IC instrumentation amplifier designed for data acquisition applications requiring high accuracy under worst-case ...
- Table of contents:
AD522
-
Suppliers
DataSheet
General Description
AD522 General Description
The AD522 is a precision IC instrumentation amplifier designed for data acquisition applications requiring high accuracy under worst-case operating conditions. An outstanding combination of high
AD522 Maximum Ratings
| Single/Dual Supply | Dual |
| Voltage Supply (Vmax) | ±18V |
| Gain Setting Method | Resistor |
| Gain Range (min to max) | 1000 |
| Bandwidth G=10 (kHz typ) | 3kHz |
| CMRR (dB) | 90dB |
| Vnoise RTI 1-10 Hz Vp-p | 4V p-p |
| Temperature Range | -55 to +125 |
| Gain Error (%) max | +0.05% |
| Supply Current | 10mA |
| Package | DH-14B |
| Vosi (V) | 100V |

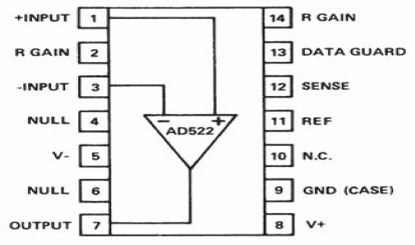

AD522 Connection Diagram
AD522
