MFG:Analog Devices Inc Category:Integrated Circuits (ICs)
Category: Integrated Circuits (ICs)
MFG: Analog Devices Inc
Descriptions: IC IN AMP SGL PGA BI/JFET 16CDIP
23
17.12217
393.81
| Technical/Catalog Information | AD526AD |
| Vendor | Analog Devices Inc |
| Category | Integrated Circuits (ICs) |
| Packaging | Tube |
| Amplifier Type | Programmable Gain |
| Number of Circuits | 1 - Single |
| Package / Case | 16-CDIP (300 mil) |
| Slew Rate | 24 V/s |
| Gain Bandwidth Product | - |
| Current - Supply | 10mA |
| Current - Output / Channel | 10mA |
| Voltage - Supply, Single/Dual (±) | ±4.5 V ~ 16.5 V |
| Output Type | - |
| -3db Bandwidth | 4MHz |
| Current - Input Bias | 50pA |
| Operating Temperature | -40°C ~ 85°C |
| Voltage - Input Offset | 250V |
| Drawing Number | * |
| RoHS Status | RoHS Non-Compliant |
| Other Names | AD526AD AD526AD |
AD500-9
PDF/DataSheet Download
The AD5266 has a high efficiency two-channel Bridge Tied Load (BTL) Class-D audio power amplifier and stereo Class AB headphone amplifiers. The amplifier operates over a supply voltage range 8V to 16V and consumes low quiescent current.
The AD52651A is a stereo, filter-less class-D audio amplifier with headphone driver. Operating with 5.0V loudspeaker driver supply, it can deliver 2.5W/CH output power into 4 loudspeaker within 10% THD+N and 120mW/CH output power into 16 headphone within 1%...

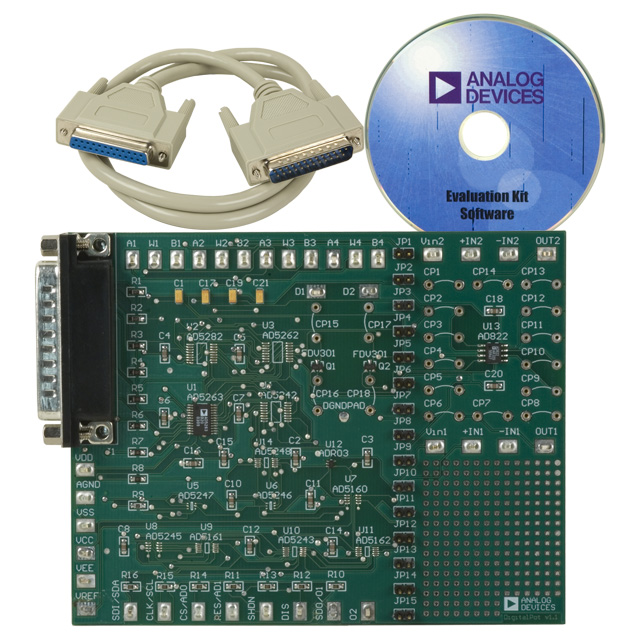

BOARD EVAL FOR AD5263
