MFG:Analog Devices Inc Category:Integrated Circuits (ICs)
Category: Integrated Circuits (ICs)
MFG: Analog Devices Inc
Descriptions: IC IN AMP SGL PGA BI/JFET 16CDIP
23
20.62217
474.31
| Technical/Catalog Information | AD526BD |
| Vendor | Analog Devices Inc |
| Category | Integrated Circuits (ICs) |
| Packaging | Tube |
| Amplifier Type | Programmable Gain |
| Number of Circuits | 1 - Single |
| Package / Case | 16-CDIP (300 mil) |
| Slew Rate | 24 V/s |
| Gain Bandwidth Product | - |
| Current - Supply | 10mA |
| Current - Output / Channel | 10mA |
| Voltage - Supply, Single/Dual (±) | ±4.5 V ~ 16.5 V |
| Output Type | - |
| -3db Bandwidth | 4MHz |
| Current - Input Bias | 50pA |
| Operating Temperature | -40°C ~ 85°C |
| Voltage - Input Offset | 250V |
| Drawing Number | * |
| RoHS Status | RoHS Non-Compliant |
| Other Names | AD526BD AD526BD |

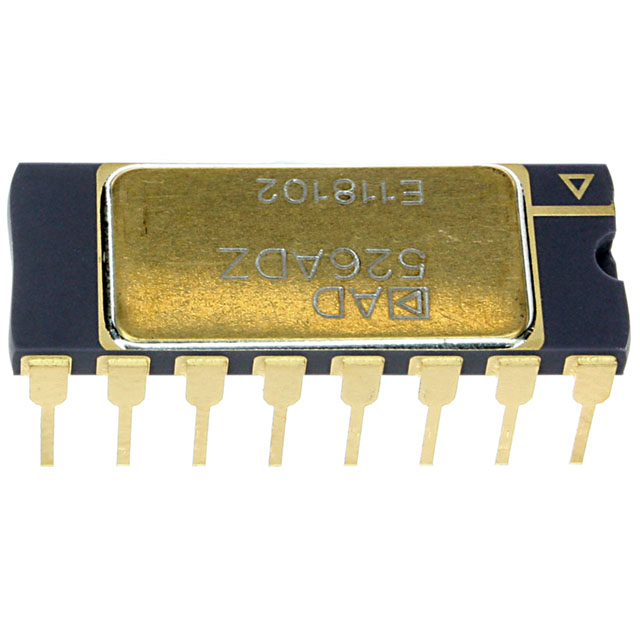

AD526BD
PDF/DataSheet Download
IC IN AMP SGL PGA BI/JFET 16CDIP
IC IN AMP SGL PGA BI/JFET 16CDIP
