Part Number: AD53033

MFG: AD

Package Cooled: QFP

Description: The AD53033 is a single chip that performs the pin electronicsfunctions of driver and comparator (D-C) in ATE VLSI a...

AD53033 General Description

The AD53033 is a single chip that performs the pin electronicsfunctions of driver and comparator (D-C) in ATE VLSI andmemory testers.The driver is a proprietary design that features three activestates: Data High Mode, Data Low Mode and Term Mode aswell as an Inhibit State. This facilitates the implementation ofhigh speed active termination. The output voltage range is 3 Vto +8 V to accommodate a wide variety of test devices.

Theoutput leakage is typically less than 250 nA over the entire signalrange.Thedual comparator, with an input range equal to the driveroutput range, features built-in latches and ECL-compatibleoutputs. The outputs are capable of driving 50 W signal linesterminated to 2 V. Signal tracking capability is upwardsof5 V/ns.

Also included on the chip is an onboard temperature sensorwhose purpose is to give an indication of the surface temperatureof the D-C. This information can be used to measure qJCand qJA or flag an alarm if proper cooling is lost. Output from the

AD53033 Maximum Ratings

Power Supply Voltage
+VS to GND . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .. +13 V
VS to GND . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8 V
+VS to VS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . +20 V
PWR GND to ECL GND or HQ GND . . . . . . . . . .. . . . . . ±0.4 V
Inputs
DATA DATA, , IOD, IOD, RLD, RLD . . . . . .. . . . . . . . +5 V, 3 V
DATA to DATA,, IOD to IOD, RLD to RLD . . . . . . .. . . . . . ±3 V
LEL, LEL, LEH, LEH . . . . . . . . . . . . . . . . . . . . . . . . +5 V, 3 V
LEL to LEL, LEH to LEH . . . . . . . . . . . . . . . . . . . . . . . . . .±3 V
INHL, INHL . . . . . . . . . . . . . . . . . . . . . . . . . . .. . . +5 V, 3 V
INHL to INHL. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . ±3 V
VH, VL, VTERM, VCOM_I to GND . . . . . . . . . . . . . . +9 V, 4 V
VH to VL . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .. . ±11 V
(VHVTERM) and (VTERM VL) . . . . . . . . . . . . .. . . . . . ±11 V
VH, VL, VTERM, VCOM_I to GND . . . . . . . . . . . . . . +9 V, 4 V
VH to VL . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .. . ±11 V
(VHVTERM) and (VTERM VL) . . . . . . . . . . . . .. . . . . . ±11 V
IOHC . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . ±6 V
IOLC . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .. . ±6 V
HCOMP . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .. . . . +9 V, 4 V
LCOMP . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .. . . +9 V, 4 V
HCOMP, LCOMP to VOUT . . . . . . . . . . . . . . . . . .. . . . . . . ±11 V
Outputs
VOUT Short Circuit Duration . . . . . . . . . . . . . . . .. . . Indefinite2
VOUT Inhibit Mode . . . . . . . . . . . . . . . . . . . . . . . . . . +9 V, 4 V
VHDCPL . . . . . . . .. . . . . Do Not Connect Except for Cap to V_CC
VLDCPL . . . . . . . . . . . . . Do Not Connect Except for Cap to V_EE
QH, QH, QL, QL Maximum IOUT
Continuous . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .. . . . . . 50 mA
Surge . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .. . . . . .100 mA
THERM . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .. . . . . . +13 V, 0 V

AD53033 Features

250 MHz Operation
Driver/Comparator Included
52-Lead LQFP Package with Built-in Heat Sink

AD53033 Typical Application

Automatic Test Equipment
Semiconductor Test Systems
Board Test Systems
Instrumentation and Characterization Equipment

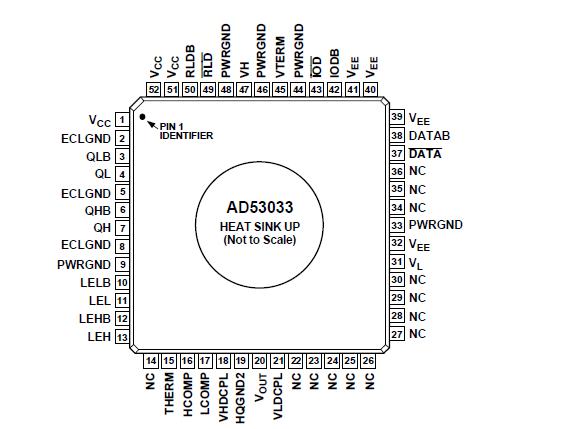

AD53033 Connection Diagram
