Part Number: AD53040G



MFG: ADI



D/C: 09

Description: The AD53040 is a complete high speed pin driver designed foruse in digital or mixed signal test systems. Combining a highspeed monolith...


Urgent Purchase

AD53040G General Description



The AD53040 is a complete high speed pin driver designed foruse in digital or mixed signal test systems. Combining a highspeed monolithic process with a unique surface mount package,this

AD53040G Maximum Ratings

Package 20-Lead PSOP
Vmax 8
Vmin -3
Watts Per Channel (W) 1.15W
Channels 1
Configuration D

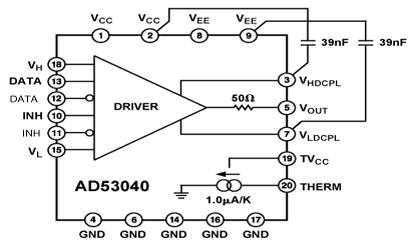

AD53040G Connection Diagram

AD53040G Connection Diagram

AD53040G datasheet
