Part Number: AD5306
MFG: ADI
D/C: 09
Description: The AD5306/AD5316/AD5326 are quad 8-, 10-, and 12-bit buffered voltage output DACs, in a 16-lead TSSOP package, that operate from a sin...
- Table of contents:
AD5306
-
Suppliers
DataSheet
General Description
AD5306 General Description
The AD5306/AD5316/AD5326 are quad 8-, 10-, and 12-bit buffered voltage output DACs, in a 16-lead TSSOP package, that operate from a single 2.5 V to 5.5 V supply, consuming 500 A at 3 V. Their
AD5306 Maximum Ratings
| Resolution (Bits) | 8bit |
| DAC Update Rate | 167kSPS |
| DAC Settling Time | 6s |
| # DAC Outputs | 4 |
| DAC Type | Voltage Out |
| DAC Input Format | I2C/Ser 2-wire,Ser |
| Output FSR | (Uni 2Vref),(Uni Vref) |
| Ref Int/Ext | Ext |
| Supply Vnom | Single(+2.5),Single(+2.7),Single(+3),Single(+3.3),Single(+5) |
| Pwr Diss | 4.5mW |
| Package | SOP |

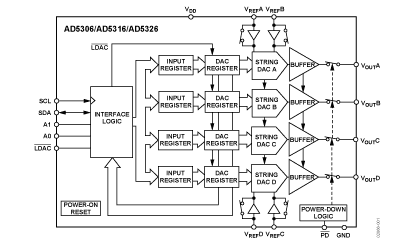

AD5306 Connection Diagram
AD5306
PDF/DataSheet Download
- Datasheet: AD5306
- File Size: 332248 KB
- Manufacturer: AD [Analog Devices]
- Click here to Download
