Purchase AD5308, In-stock AD5308 From SeekIC.
MFG:ADI D/C:09
Part Number: AD5308
MFG: ADI
D/C: 09
Description: The AD5308/AD5318/AD5328 are octal 8-, 10-, and 12-bitbuffered voltage output DACs in a 16-lead TSSOP. They operatef...
- Table of contents:
AD5308
-
Suppliers
DataSheet
General Description
AD5308 General Description
The AD5308/AD5318/AD5328 are octal 8-, 10-, and 12-bitbuffered voltage output DACs in a 16-lead TSSOP. They operatefrom a single 2.5 V to 5.5 V supply, consuming 0.7 mA typ at 3 V.Their on-chip output amplifiers allow the outputs to swingrail-to-rail with a slew rate of 0.7 V/s. The AD5308/AD5318/AD5328 use a versatile 3-wire serial interface that operates atclock rates up to 30 MHz and is compatible with standardSPI, QSPI, MICROWIRE, and DSP interface standards.
The references for the eight DACs are derived from two referencepins (one per DAC quad). These reference inputs can beconfigured as buffered, unbuffered, or VDD inputs. The partsincorporate a power-on reset circuit, which ensures that the DACoutputs power up to 0 V and remain there until a valid write tothe device takes place. The outputs of all DACs may be updatedsimultaneously using the asynchronousLDAC input. The partscontain a power-down feature that reduces the current consumptionof the devices to 400 nA at 5 V (120 nA at 3 V). The eightchannels of the DAC may be powered down individually.
All three parts are offered in the same pinout, which allowsusers to select the resolution appropriate for their applicationwithout redesigning their circuit board.
AD5308 Maximum Ratings
(TA = 25°C, unless otherwise noted.)
VDD to GND . . . . . . . . . . . . . . . . . . . . . . . . . . . 0.3 V to +7 V
Digital Input Voltage to GND . . . . . . . . .0.3 V to VDD + 0.3 V
Reference Input Voltage to GND . . . . . .0.3 V to VDD + 0.3 V
VOUTAVOUTD to GND . . . . . . . . . . .. . 0.3 V to VDD + 0.3 V
Operating Temperature Range
Industrial (A, B Version) . . . . . . . . . . . . . . . 40 to +105
Storage Temperature Range . . . . . . . . . . . . 65 to +150
Junction Temperature (TJ MAX) . . . . . . . . . . . . . . . . . . .150
VDD to GND . . . . . . . . . . . . . . . . . . . . . . . . . . . 0.3 V to +7 V
Digital Input Voltage to GND . . . . . . . . .0.3 V to VDD + 0.3 V
Reference Input Voltage to GND . . . . . .0.3 V to VDD + 0.3 V
VOUTAVOUTD to GND . . . . . . . . . . .. . 0.3 V to VDD + 0.3 V
Operating Temperature Range
Industrial (A, B Version) . . . . . . . . . . . . . . . 40 to +105
Storage Temperature Range . . . . . . . . . . . . 65 to +150
Junction Temperature (TJ MAX) . . . . . . . . . . . . . . . . . . .150
AD5308 Features
AD5308: 8 Buffered 8-Bit DACs in 16-Lead TSSOPA Version: ±1 LSB INL, B Version: ±0.75 LSB INLAD5318: 8 Buffered 10-Bit DACs in16-Lead TSSOPA Version: ±4 LSB INL, B Version: ±3 LSB INLAD5328: 8 Buffered 12-Bit DACs in 16-Lead TSSOPA Version: ±16 LSB INL, B Version: ±12 LSB INLLow Power Operation: 0.7 mA @ 3 VGuaranteed Monotonic by Design over All CodesPower-Down to 120 nA @ 3 V, 400 nA @ 5 VDouble-Buffered InputLogicBuffered/Unbuffered/VDD Reference Input OptionsOutput Range: 0 V to VREF or 0 V to 2 VREFPower-On Reset to 0 VProgrammabilityIndividual Channel Power-DownSimultaneous Update of Outputs (LDAC)Low Power, SPI®, QSPI™, MICROWIRE™, and DSPCompatible 3-Wire Serial InterfaceOn-Chip Rail-to-Rail Output Buffer AmplifiersTemperature Range 40C to +105
AD5308 Typical Application
Portable Battery-Powered InstrumentsDigital Gain and Offset AdjustmentProgrammable Voltage and Current SourcesOptical NetworkingAutomatic Test Equipment

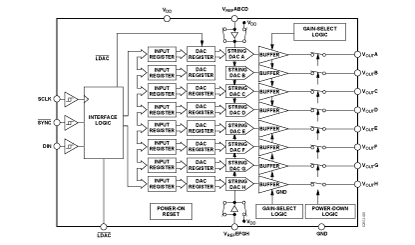

AD5308 Connection Diagram
AD5308
PDF/DataSheet Download
- Datasheet: AD5308
- File Size: 315681 KB
- Manufacturer: AD [Analog Devices]
- Click here to Download
