Part Number: AD532



MFG: ADI



D/C: 09

Description: The AD532 is the first pretrimmed single chip monolithic multiplier/ divider. It guarantees a maximum multiplying error...


Urgent Purchase

AD532 General Description


The AD532 is the first pretrimmed single chip monolithic multiplier/ divider. It guarantees a maximum multiplying error of ±1.0% and a ±10 V output voltage without the need for any external trimming resistors or output op amp. Because the AD532 is internally trimmed, its simplicity of use provides design engineers with an attractive alternative to modular multipliers, and its monolithic construction provides significant advantages in size, reliability and economy. Further, the AD532 can be used as a direct replacement for other IC multipliers that require external trim networks (such as the AD530).

AD532 Features

`Pretrimmed to 61.0% (AD532K)
`No External Components Required
`Guaranteed 61.0% max 4-Quadrant Error (AD532K)
`Diff Inputs for (X1 X2) (Y1 Y2)/10 V Transfer Function
`Monolithic Construction, Low Cost

AD532 Typical Application

·Multiplication, Division, Squaring, Square Rooting
·Algebraic Computation
·Power Measurements
·Instrumentation Applications
·Available in Chip Form

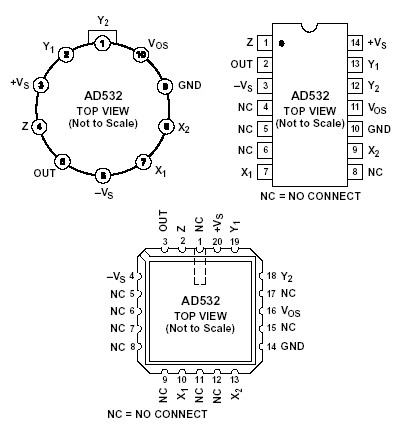

AD532 Connection Diagram

AD532 Connection Diagram
