Purchase AD5320, In-stock AD5320 From SeekIC.
MFG:ADI D/C:09
Part Number: AD5320
MFG: ADI
D/C: 09
Description: The AD5320 is a single, 12-bit buffered voltage out DAC that operates from a single +2.7 V to +5.5 V supply consuming 115 A at 3 V. Its...
- Table of contents:
AD5320
-
Suppliers
DataSheet
General Description
AD5320 General Description
The AD5320 is a single, 12-bit buffered voltage out DAC that operates from a single +2.7 V to +5.5 V supply consuming 115 A at 3 V. Its on-chip precision output amplifier allows rail-to-rail
AD5320 Maximum Ratings
| Resolution (Bits) | 12bit |
| DAC Update Rate | 125kSPS |
| DAC Settling Time | 8s |
| # DAC Outputs | 1 |
| DAC Type | Voltage Out |
| DAC Input Format | Ser,SPI |
| Output FSR | (Uni Vdd) |
| Ref Int/Ext | Int |
| Supply Vnom | Single(+2.7),Single(+3),Single(+3.3),Single(+5) |
| Pwr Diss | 345W |
| Package | SOP,SOT |

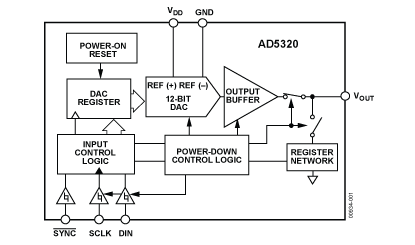

AD5320 Connection Diagram
AD5320
PDF/DataSheet Download
- Datasheet: AD5320
- File Size: 368168 KB
- Manufacturer: AD [Analog Devices]
- Click here to Download
