Part Number: AD5327



MFG: ADI



D/C: 09

Description: The AD5307/AD5317/AD5327 are quad 8-, 10-, and 12-bit buffered voltage-output DACs, in a 16-lead TSSOP package, which operate from a singl...


Urgent Purchase

AD5327 General Description


The AD5307/AD5317/AD5327 are quad 8-, 10-, and 12-bit buffered voltage-output DACs, in a 16-lead TSSOP package, which operate from a single 2.5 V to 5.5 V supply consuming 400 A at 3 V. Their on-chip

AD5327 Maximum Ratings

Resolution (Bits) 12bit
DAC Update Rate 125kSPS
DAC Settling Time 8s
# DAC Outputs 4
DAC Type Voltage Out
DAC Input Format Ser,SPI
Output FSR (Uni 2Vref),(Uni Vref)
Ref Int/Ext Ext
Supply Vnom Single(+2.5),Single(+2.7),Single(+3),Single(+3.3),Single(+5)
Pwr Diss 4.5mW
Package SOP

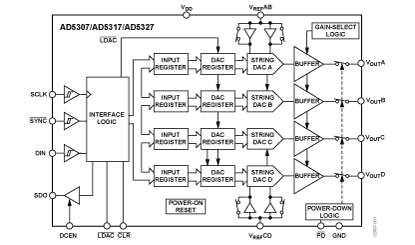

AD5327 Connection Diagram

AD5327 Connection Diagram
