MFG:Analog Devices Inc. Category:ICs, Integrated Circuits, Semiconductors
Category: ICs, Integrated Circuits, Semiconductors
MFG: Analog Devices Inc.

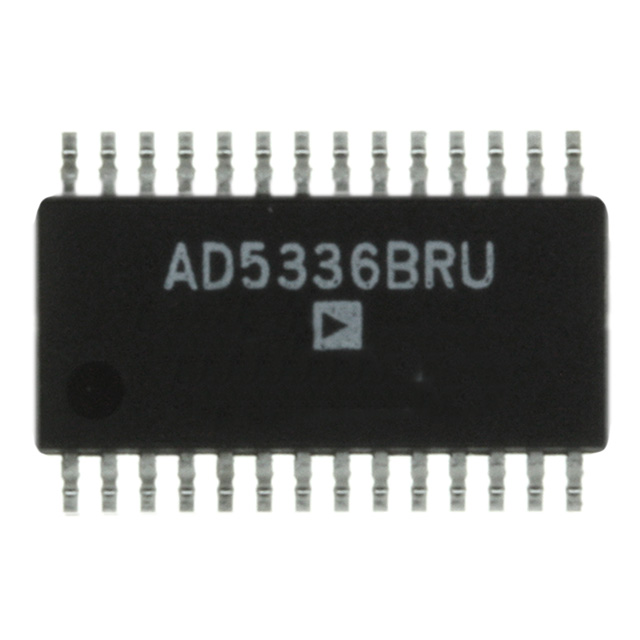

Descriptions: IC DAC 10BIT QUAD VOUT 28-TSSOP
| Technical/Catalog Information | AD5336BRU-REEL |
| Vendor | Analog Devices Inc. |
| Category | ICs, Integrated Circuits, Semiconductors |
| Mounting Type | Surface (SMD, SMT) |
| Package Name | 28-TSSOP |
| Number of Converters | 4 [Nom] |
| Resolution (Bits) | 10 b [Nom] |
| Sampling Rate | 143.000 ksps [Max] |
| Settling Time | 9.0 s [Nom] |
| Interface(s) | Parallel |
| Number of Outputs and Type | 4 Voltage, Unipolar |
| Voltage Supply Source | Single Supply |
| Operating Temperature | -40 °C [Min] |
| Operating Temperature | 105 °C [Max] |
| Packaging | Tape & Reel |
| Single Supply Voltage Typical | 2.5V |
| Single Supply Voltage Typical | 2.7V |
| Single Supply Voltage Typical | 3V |
| Single Supply Voltage Typical | 3.3V |
| Single Supply Voltage Typical | 5V |
| Technology | String |
| DNL (max)(±LSB) | 0.500 [Nom] |
| INL [max] (±LSB) | 4.000 [Nom] |
| Temperature Grade | Extended |
| RoHS Status | RoHS Non-Compliant |
| Other Names | AD5336BRU REEL AD5336BRUREEL |
AD500-9
PDF/DataSheet Download
IC DAC 10BIT QUAD VOUT 28-TSSOP
The AD5334/AD5335/AD5336/AD5344 are quad 8-, 10-, and 12-bit DACs. They operate from a 2.5 V to 5.5 V supply consuming just 500 A at 3 V, and feature a power-down mode that further reduces the current to 80 nA. These devices incorporate an on-chip output buf...
