AD5339
-
Suppliers
DataSheet
General Description
AD5339 Maximum Ratings
| Parameter | Rating |
| VDD to GND | -0.3V to +7V |
| SCL,SDA to GND | -0.3V to VDD+0.3V |
| AO to GND | -0.3V to VDD+0.3V |
| Reference Input Voltage to GND | -0.3V to VDD+0.3V |
| VOUT A-VOUTB to GND | -0.3V to VDD+0.3V |
| Operating Temperature Range | |
| Industrial(B Version) | -40 to +105 |
| Storage Temperature Range | -65 to 150 |
|
Junction Temperature(T,max)
|
150 |
| MSOP Package | |
| Power Dissipation | (T,max-TA)JA |
| JA Thermal Impedance | 206/W |
| JC Thermal Impedance | 44/W |
| Reflow Soldering | |
| Peak Temperature | 220+5/-0 |
| Time at Peak Temperature | 10s to 40s |
AD5339 Features
AD5337
-2 buffered 8-bit DACs in 8-lead MSOP
AD5338, AD5338-1
-2 buffered 10-bit DACs in 8-lead MSOP
AD5339
-2 buffered 12-bit DACs in 8-lead MSOP
Low power operation: 250 mA@ 3 V, 300 mA@ 5 V
2-wire (I2C®compatible) serial interface
2.5 V to 5.5 V power supply
Guaranteed monotonic by design over all codes
Power-down to 80 nA @ 3 V, 200 nA @ 5 V
3 power-down modes
Double-buffered input logic
Output range: 0 V to VREF
Power-on reset to 0 V
Simultaneous update of outputs (LDAC</a> function)
Software clear facility
Data readback facility
On-chip rail-to-rail output buffer amplifiers
Temperature range −40°C to +105°C
-2 buffered 8-bit DACs in 8-lead MSOP
AD5338, AD5338-1
-2 buffered 10-bit DACs in 8-lead MSOP
AD5339
-2 buffered 12-bit DACs in 8-lead MSOP
Low power operation: 250 mA@ 3 V, 300 mA@ 5 V
2-wire (I2C®compatible) serial interface
2.5 V to 5.5 V power supply
Guaranteed monotonic by design over all codes
Power-down to 80 nA @ 3 V, 200 nA @ 5 V
3 power-down modes
Double-buffered input logic
Output range: 0 V to VREF
Power-on reset to 0 V
Simultaneous update of outputs (LDAC</a> function)
Software clear facility
Data readback facility
On-chip rail-to-rail output buffer amplifiers
Temperature range −40°C to +105°C
AD5339 Typical Application
-Portable battery-powered instruments
-Digital gain and offset adjustment
-Programmable voltage and current sources
-Programmable attenuators
-Industrial process control
-Digital gain and offset adjustment
-Programmable voltage and current sources
-Programmable attenuators
-Industrial process control

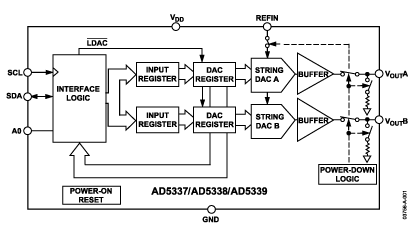

AD5339 Connection Diagram
AD5339
PDF/DataSheet Download
- Datasheet: AD5339
- File Size: 670655 KB
- Manufacturer: AD [Analog Devices]
- Click here to Download
