AD534

`Pretrimmed to 60.25% max 4-Quadrant Error (AD534L)

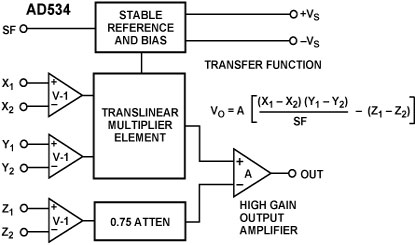

`All Inputs (X, Y and Z) Differential, High Impedance for [(X₁X₂) (Y₁Y₂)/10 V] + Z₂ Transfer Function
`Scale-Factor Adjustable to Provide up to X100 Gain
`Low Noise Design: 90 V rms, 10 Hz10 kHz
`Low Cost, Monolithic Construction
`Excellent Long Term Stability

The AD534 is a monolithic laser trimmed four-quadrant multiplier divider having accuracy specifications previously found only in expensive hybrid or modular products. A maximum multiplication error of ±0.25% is guaranteed for the AD534L without any external trimming. Excellent supply rejection, low temperature coefficients and long term stability of the on-chip thin film resistors and buried Zener reference preserve accuracy even under adverse conditions of use. It is the first multiplier to offer fully differential, high impedance operation on all inputs, including the Z-input, a feature which greatly increases its flexibilityand ease of use. The scale factor is pretrimmed to the standard value of 10.00 V; by means of an external resistor, this can be reduced to values as low as 3 V.

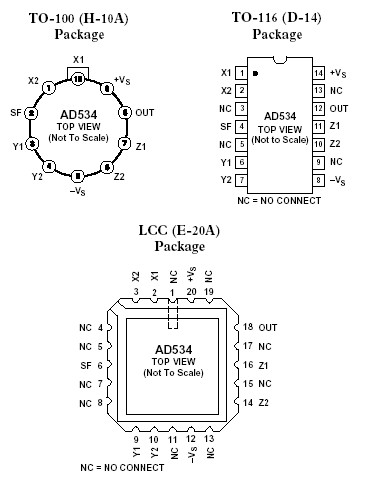

The wide spectrum of applications and the availability of several grades commend this multiplier as the first choice for all new designs. The AD534J (±1% max error), AD534K (±0.5% max) and AD534L (±0.25% max) are specified for operation over the 0 to +70 temperature range. The AD534S (±1% max) and AD534T (±0.5% max) are specified over the extended temperature range, 55 to +125. All grades are available in hermetically sealed TO-100 metal cans and TO-116 ceramic DIP packages. AD534J, K, S and T chips are also available.
