Purchase AD53508, In-stock AD53508 From SeekIC.
Part Number: AD53508
Description: The AD53508 is a custom dual-channel parametric measurement circuit for use in semiconductor automatic...
- Table of contents:
AD53508
-
Suppliers
DataSheet
General Description
AD53508 General Description
The AD53508 is a custom dual-channel parametric measurement circuit for use in semiconductor automatic test equipment.It contains programmable modes to force a pin voltage and measure its current or to integrate and hold a current value.Alternatively, a current can be forced and the compliance voltage measured.
The device provides a remote force/sense capability to ensure accuracy at the tester pin. A guard output is available to drive the shield of a force/sense pair.
Two input references per channel permit controlled switching to different voltage or current levels. The forced voltage or current levels can be switched back to the measurement system to read back the analog levels for system calibration.
The circuit is powered by +15 V, +5 V, and 10 V supplies and dissipates 230 mW nominally.
AD53508 Maximum Ratings
| Parameter |
Min |
Max |
Unit |
Condition |
| VDD to VEE |
-0.3 |
+26.4 |
V |
|
| VCC to VEE |
-0.3 |
+26.4 |
V |
|
| VDD to DGND |
0.3 |
+6.0 |
V |
|
| Digital Inputs to DGND |
-0.3 |
VCC+0.3 |
V |
|
| Power Dissipation |
700 |
mW |
TA 75°C | |
| Operating Temperature Range |
25 |
70 |
°C |
|
| Storage Temperature |
-60 |
+125 |
°C |
|
| Lead Temperature | 300 | °C | Soldering (10 sec) | |
| Force/Sense Outputs |
VEE0.8 |
+150 |
V |
*Stresses above those listed under Absolute Maximum Ratings may cause permanent damage to the device. These are stress ratings only; functional operation of the device at these or any other conditions above those indicated in the operational sections of this specification is not implied. Exposure to absolute maximum rating conditions for extended periods may affect device reliability.
AD53508 Features
`Dual Measurement Channels
`Precision Four-Quadrant-Per-Pin V/I Source
`Programmable Current Force Ranges
±204.8 A and ±2.048 mA
`Five Current Measurement Ranges
204.8 nA to ±2.048 mA
`Output Voltage Range: 4 V to +9 V
`Power Supplies: +15 V, +5 V, and 10 V
`44-Lead Plastic J-Leaded Chip Carrier Package
`Precision Four-Quadrant-Per-Pin V/I Source
`Programmable Current Force Ranges
±204.8 A and ±2.048 mA
`Five Current Measurement Ranges
204.8 nA to ±2.048 mA
`Output Voltage Range: 4 V to +9 V
`Power Supplies: +15 V, +5 V, and 10 V
`44-Lead Plastic J-Leaded Chip Carrier Package
AD53508 Typical Application
Can Be Used with the AD53032 DCL to Extend Current Force Range to 35 mA
AD53508 Connection Diagram
AD53508
PDF/DataSheet Download
- Datasheet: AD53508
- File Size: 143030 KB
- Manufacturer:
- Click here to Download
- ·AD500-9
- ETC [ETC]
- Avalanche Photodiode NIR
- 220693 KB
- ·AD5011
- AD [Analog Devices]
- 2 Pair/1 Pair ETSI Compatible HDSL Analog Front End
- 95527 KB
- ·AD5011B
- AD [Analog Devices]
- 2 Pair/1 Pair ETSI Compatible HDSL Analog Front End
- 95527 KB
- ·AD5040
- AD [Analog Devices]
- Full Accurate 14/16 Bit Vout nanoDac Buffered, 3V/5V, Sot 23
- 849841 KB
- ·AD5060
- AD [Analog Devices]
- Full Accurate 14/16 Bit Vout nanoDac Buffered, 3V/5V, Sot 23
- 849841 KB
- ·AD5061
- AD [Analog Devices]
- Full Accurate 14/16 Bit Vout nanoDac Buffered, 3V/5V, Sot 23
- 849841 KB
- ·AD5062
- AD [Analog Devices]
- Full Accurate 14/16 Bit Vout nanoDac Buffered, 3V/5V, Sot 23
- 849841 KB
- ·AD5063
- AD [Analog Devices]
- Full Accurate 14/16 Bit Vout nanoDac Buffered, 3V/5V, Sot 23
- 849841 KB
AD53508 Relative Products
AD53502JSTP
IC DCL MID PERFORMANCE

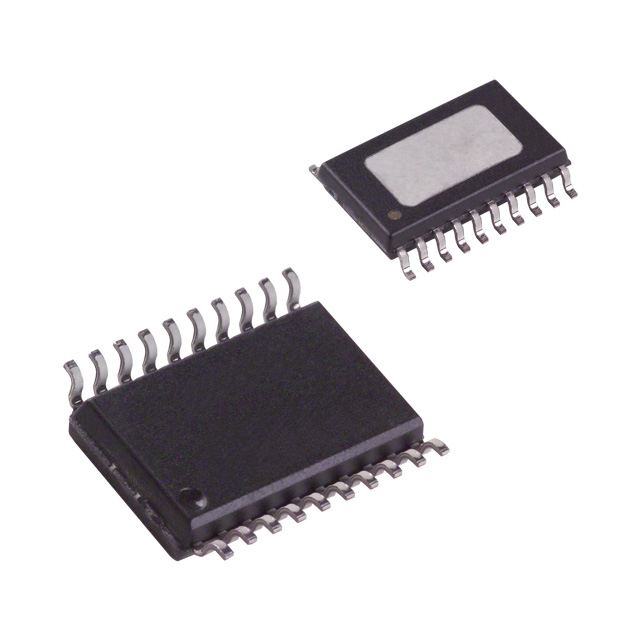

AD53500JRP
