Features: ·40-channel DAC in 80 Lead LQFP and 100 Ball CSPBGA
·Guaranteed monotonic to 14 bits
·Maximum output voltage span of 4 × VREF (20 V)
·Nominal output voltage range of -4 V to +8 V
·Multiple, Independent output spans available
·System calibration function allowing user-programmable offset and gain
·Channel grouping and addressing features
·Thermal Monitor Function
·DSP/microcontroller-compatible serial interface
·LVDS serial interface
·2.5 V to 5.5 V JEDEC-compliant digital levels
·Power-on reset
·Digital reset (RESET)
·Clear function to user-defined SIGGND (CLR pin)
·Simultaneous update of DAC outputs (LDAC pin)Application·Level setting in automatic test equipment (ATE)
·Variable optical attenuators (VOA)
·Optical switches
·Industrial control systems
·InstrumentationPinout

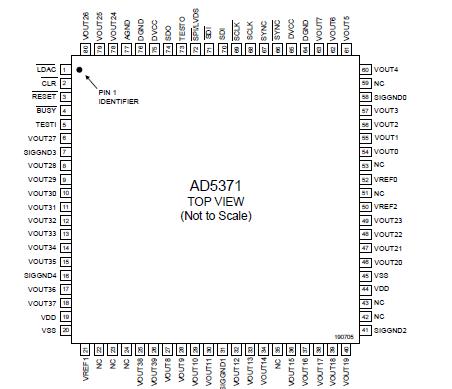

SpecificationsVDD to AGND...............................−0.3 V to +17 V
VSS to AGND...............................−17 V to +0.3 V
VCC to DGND................................−0.3 V to +7 V
Digital Inputs to DGND......−0.3 V to VCC + 0.3 V
Digital Outputs to DGND...−0.3 V to VCC + 0.3 V
VREF1(+), VREF2(+) to AGND.......−0.3 V to +7 V
VREF1(−), VREF2(−) to AGND..VSS− 0.3 V to VDD + 0.3 V
VBIAS to AGND.............................−0.3 V to +7 V
VOUT0VOUT31 to AGND......VSS − 0.3 V to VDD + 0.3 V
REFGND to AGND..................VSS − 0.3 V to VDD + 0.3 V
AGND to DGND.........................−0.3 V to +0.3 V
Operating Temperature Range (TA)
Industrial (A Version)...........................−40°C to +85°C
Storage Temperature Range.............−65°C to +150°C
Junction Temperature (TJ max)............................130°C
108-Lead CSPBGA Package
JA Thermal Impedance
80-LQFP ..........................................38.72°C/w
100-CSPBGA .....................................40°C/w
Reflow Soldering
Peak Temperature.....................................230°C
Time at Peak Temperature.............10 sec to 40 sec
Stresses above those listed under Absolute Maximum Ratings may cause permanent damage to the device. This is a stress rating only, and functional operation of the device at these or any other conditions above those listed in the operational sections of this specification is not implied. Exposure to absolute maximum rating conditions for extended periods may affect device reliability.
| DAC Input Format |
Ser,SPI |
| # DAC Outputs |
40 |
| Pwr Diss (Max) |
580mW |
| DAC Uni or Bip |
Uni/Bip |
| DAC Vout Swing max |
20V p-p |
| Output FSR |
(Bip 2Vref),(Uni 4 x VRef) |
| Package |
BGA,QFP |
| Resolution (Bits) |
14bit |
| Supply Vnom |
Multi(±15, +2.5Dig) ,Multi(±15, +3.3Dig) ,Multi(±15, +3Dig),Multi(±15, +5Dig) |

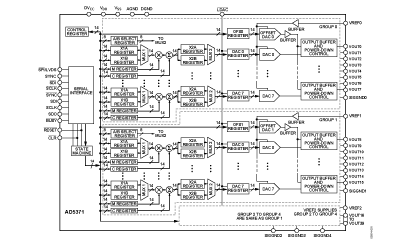

DescriptionThe AD5371 contains 40, 14-bit DACs in a single, 80-lead,LQFP package. It provides buffered voltage outputs with a span 4 times the reference voltage. The gain and offset of each DAC can be independently trimmed to remove errors. For even greater flexibility, the device is divided into blocks of 8 DACs, and the output range of each block can be independently adjusted by an offset DAC.
The AD5371 offers guaranteed operation over a wide supply range with VSS from -4.5 V to -16.5 V and VDD from +8 V to +16.5 V. The output amplifier headroom requirement is 1.4 V operating with a load current of 1 mA.
The AD5371 has a high-speed serial interface, which is compatible with SPI®, QSPI™, MICROWIRE™, and DSP interface standards and can handle clock speeds of up to 50 MHz. It also has a 100 MHz Low Voltage Differential Signaling (LVDS) serial interface compliant with EIA-644 specification.
The DAC outputs are updated on reception of new data into the DAC registers. All the outputs can be updated simultaneously by taking theLDAC input low. Each channel has a programmable gain and an offset adjust register.
Each DAC output is amplified and buffered on-chip with respect to an external SIGGND input. The DAC outputs can also be switched to SIGGND via the CLR pin.
AD5371 Data Sheet
